EV CC41-1
Angle Connector EV CC41-1 HCP
Group: 1852
Part number 117352
Pre-assembled connecting element in HCP for linking channels of the 41 series at 90°, preferably with 41/41 square channels
Fast technique for 90° joints, locks automatically and supports its own weight
Secure, form-locking connection with serrated Channel Nut and Hexagon Bolt M10, ideal shaping for high stiffness and proven Sikla rhomb for secure torque
Technical Data

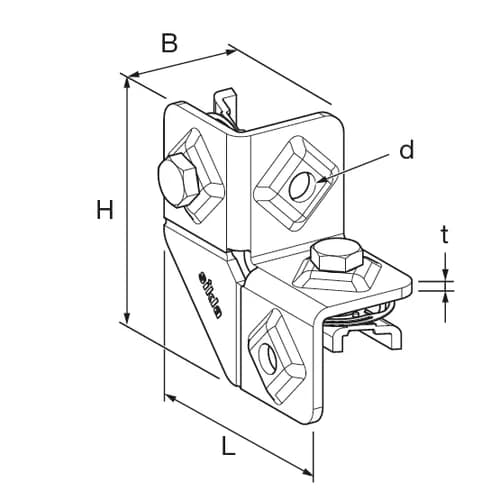

B | 45 mm |
d | 11 mm |
H | 93 mm |
L | 93 mm |
t | 4 mm |
With Speed Nut and Hexagon Bolt SKT (supplied loose).
Load range
-VX,perm. | 5,00 kN |
VX,perm. | 5,00 kN |
-VZ,perm. | 5,00 kN |
VZ,perm. | 5,00 kN |
Max. perm. working load as centre load per crossbar fixed with 2 Angle Connectors EV CC 41-1.
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
To be used in pairs.
Torque: 40 Nm
Documents
- Sikla Angle Connector EV CC
PDF (0.55MB)
