EV CC41-1
Group: 1852

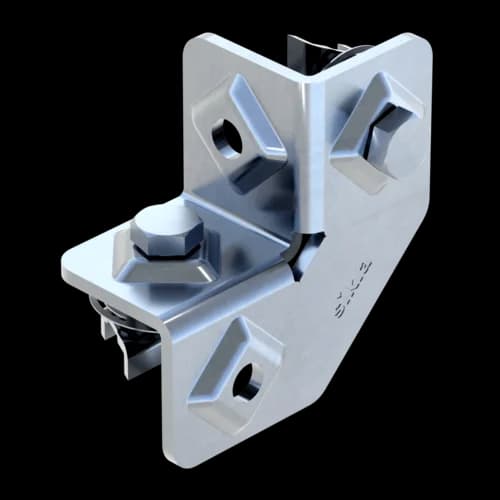

Pre-assembled connecting element in HCP for linking channels of the 41 series at 90°, preferably with 41/41 square channels
Fast technique for 90° joints, locks automatically and supports its own weight
Secure, form-locking connection with serrated Channel Nut and Hexagon Bolt M10, ideal shaping for high stiffness and proven Sikla rhomb for secure torque
To be used in pairs.
Torque: 40 Nm
PDF (559 KB)

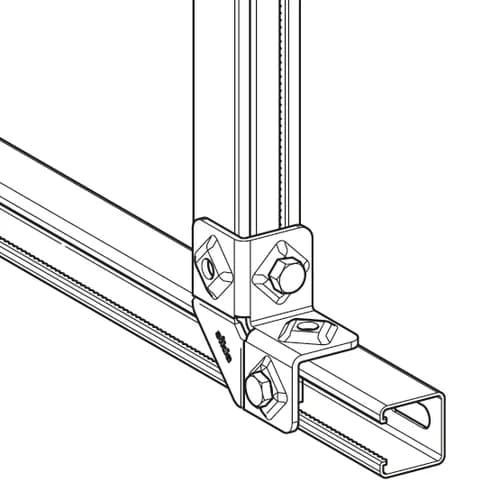

Connecting element in HCP for frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen. Fast-Technique for 90° joints of Channel System 41. Locks automatically when being put in place and supports its own weight. Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10. Ideal shaping for high stiffness. The proven Sikla rhomb guarantees a secure torque and preload force.
Certification
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
EV CC41-1 HCP | 5,00 kN | 5,00 kN | 5,00 kN | 5,00 kN |

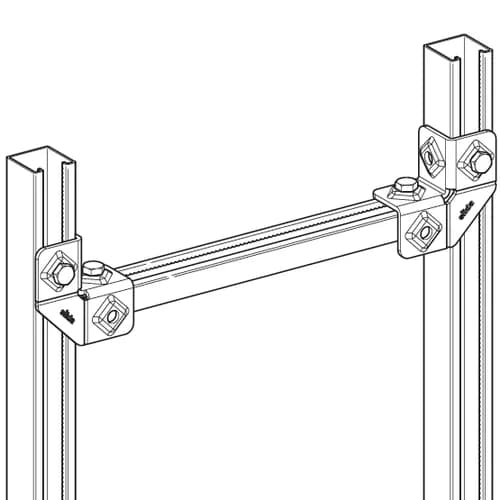

Max. perm. working load as centre load per crossbar fixed with 2 Angle Connectors EV CC 41-1.
Software
This product is available in the following software.
Info | Type | Weight | Quantity | Part number | |
| EV CC41-1 HCP | 0,382 kg/pcs. | 25 pcs. | 117352 | ||
