Safety element for Sikla channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposed along the channels, Holding Brackets HK 27 provide additional safety due to embossed teeth, which penetrate the channel. Suitable for Channels MS 27.

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposing along the channels, 41 Holding Brackets provide for additional safety due to embossed teeth, which penetrate the channel. Suitable for single and double channels. Special blanking guarantees high security and shear force after achieving form closure, especially for screwed through connecting elements.

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. Suitable for single and double channels. When loads are imposed along the channels, Holding Brackets 41 provide for additional safety due to embossed teeth, which penetrate the channel.

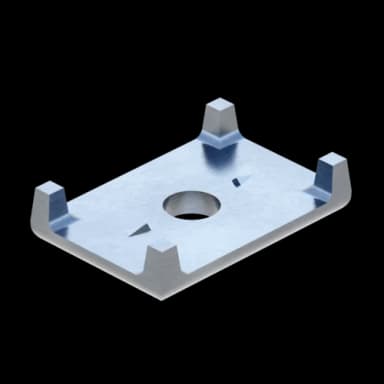

Safety element for Sikla Channels to be used instead of simple washers. The Holding Bracket prevents the edges along the opening of the channels from bending, and ensures optimum load distribution. When loads are imposed along the Channels, Holding Brackets HK 41 provide for additional safety due to embossed teeth, which penetrate the channel. Suitable for single and double channels. Special blanking guarantee high safety and shear forces after reaching form closure, especially for bolted through connecting elements.

Comprehensive solution incl. protection pad for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System, this element allows the realisation of arbitrarily compositions. The water permeable protection pad allows a secure and reliabe support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts or walkways. Following elements could be assembled to the Insulated Foot Plate: Slide Elements, Mounting Plates, Support Brackets 150/150, Joints JOI 41 T, Channels MS 41, Cantilever Brackets, End Supports WBD for single channel.

Comprehensive solution incl. protection pad for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System, this element allows the realisation of arbitrarily compositions. The water permeable protection pad allows a secure and reliabe support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts or walkways. Following elements could be assembled to the Insulated Foot Plate: Slide Elements, Mounting Plates, Support Brackets 150/150, Joints JOI 41 T, Channels MS 41, Cantilever Brackets, End Supports WBD for single channel.

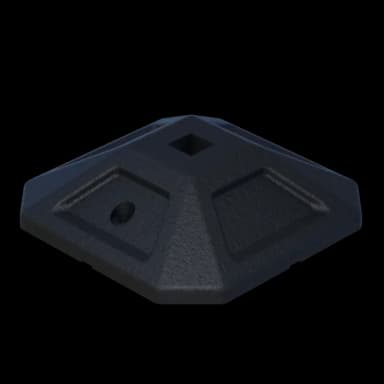

Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways. Depending on the Insulated Foot either a Channel MS 41/41 or a Channel MS 41/41 D can be plugged in.

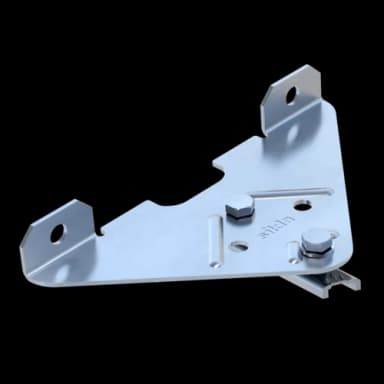

The Cross support CFB is a shear force stabilizer for Sikla Cantilever Brackets 41. The Cross Support intakes shear forces specially the force caused due to length expansion on piping with warm applications. Using the Cross Support CFB can increase the capability of handling higher shear forces.

The Cross support CFB is a shear force stabilizer for Sikla Cantilever Brackets 41. The Cross Support intakes shear forces specially the force caused due to length expansion on piping with warm applications. Using the Cross Support CFB can increase the capability of handling higher shear forces.

Attachment component to connect Beam Section TP F 100 or Channel MS.

The Joint JOI R is used for bracing of channel installations which are of central importance to seismic support of services. Due to its keyhole shaped design the joint can be retrofitted. For installing directly to Channel 41 the four pins and two fixing points guarantee a reliable rotation lock. Brackets can be stacked for bracing longitudinally and transversely. The rotation lock for the installation to an existing structure depends on the already used components. In case of the application of a Block PB 41 a rotation lock is given. In case of the application of a Holding Bracket or a Washer a rotation lock is only partly given.

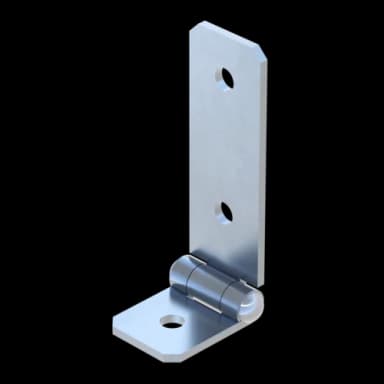

To connect Channels 41 to the building structure if an arbitrary, continuous angle adjustment up to 180° is necessary. The Joint JOI S is especially used for the connection to the structure. The two fixing points to channel ensure a rotation lock, so lateral forces can be compensated.

To be used for connecting Channels MS 41 to optionally bended structures such as tunnels, bended roof frames etc. under different angles. Especially suitable as brace support. Arrangement of the channel opening to all directions is possible.

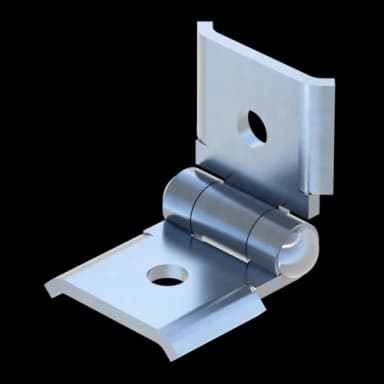

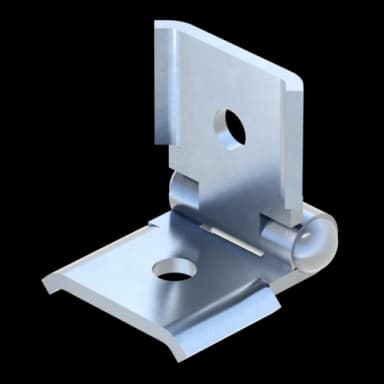

For connecting Channels MS 41 allowing for variable angle-adjustment ranging from 0° - 180°. Suitable for direct connection to the building structure and, in combination with channel, can be used as an angular support for bracketry.

For connecting Channels MS 41 allowing for variable angle-adjustment ranging from 0° - 180°. Suitable for direct connection to the building structure and, in combination with channel, can be used as an angular support for bracketry.

Provides for easy cutting of grooved M8 and M10 Pressix Rods. Sawing and time-consuming chamfering of threads is no longer required; the thread is not damaged. Note: To be used for Pressix Rods exclusively!

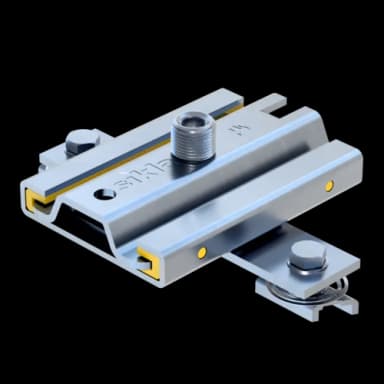

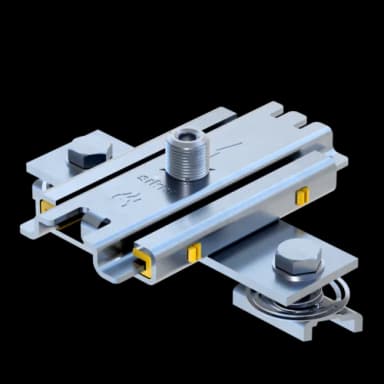

Slide Set for single and double mounting of mechanical equipment to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options, see Adapter AD f/f in chapter 'Pipe Clamps and Accessories'. Slide rails in polyamide, glass fibre reinforced.

Heavy-duty Slide Set for plant construction to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS. Various connection options of the pipe clamp depending on the respective load: M12, M16. In combination with 1/2'-adapters (see Adapter f/f) there are even further possibilities. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. Sound absorption due to slide rails in PPS glass fibre reinforced.

Base element for setting up horizontal and vertical tie rods on site.

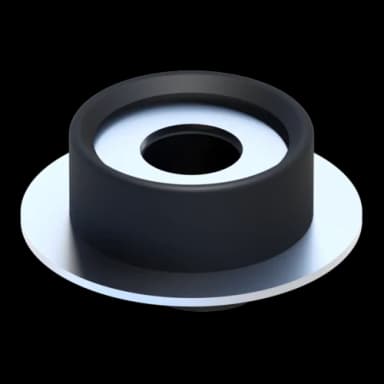

Sound Absorption Element for use in combination with Sikla Channels in ducting systems (suitable also for sound proof requirements according to DIN 4109).

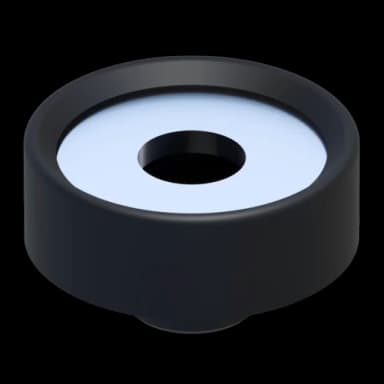

Sound Absorption Unit to be used in combination with Sikla Channels MS 27 in ducting systems (respecting sound proof demands according to DIN 4109). The geometry of this element reliably secures sound absorption between channel and suspension.

For safely installing Support Brackets of size 300/200 and 550/350 and optimising load distribution.

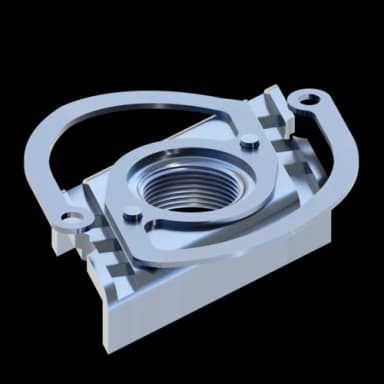

In particular useful for installation in vertical channels or where access is difficult. Further advantages: Can be used in the Sikla Channels MS 27, independent of the channel's height. No getting stuck on bolt heads when sliding in the channel. No appearance of settlement after tightening.

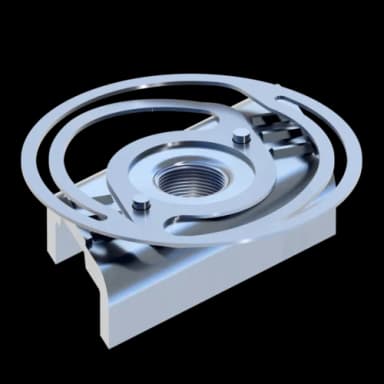

In particular useful when installing in vertical channels or in places of difficult access. Further advantages: for all Sikla Channels MS 41, independent of the height of the channel, no getting stuck on bolt heads when sliding in the channel, no appearance of settlement after tightening.
