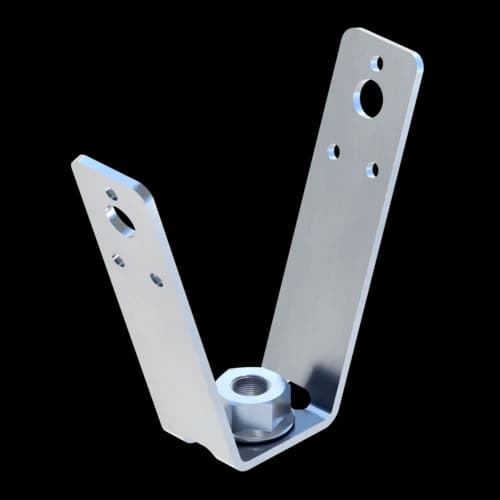

Type M10
Type RM 10
Roof Hanger TRH
Group: 1428
Mounting of pipes with low loads (DN 50) to trapezoidal sheet metal ceilings
For heavier loads, distribute evenly across several holders, e.g. using a crossbeam.
Overview of Types
General Information
Pipes up to NB 50 may be attached to trapezoidal metal sheet roofings. For devices or ducts, a load comparable to a NB 50 pipe is used for each holder for proving permissibility. Should it be necessary to fix larger loads, the respective load is to be distributed uniformly between several hangers, e.g. by way of a crossbar. The individual load for each hanger may not exceed the load exerted on a pipe of NB 50. Fixing several pipes to a crossbar is not permissible in such circumstances. Types RM8 and RM10 provide subsequent height adjustment; their revolving knurled nut is safely retained, thus preventing any accidental unscrewing. Type MS is equipped with a sound absorption unit with integrated and secured distance sleeve for soundproof installation according to DIN 4109.
Certification
Type M8 (125693) and M10 (125806) for Sprinkler Systems according to VdS Standards: G4820032 and Type M10 for Sprinkler Systems according to FM ≤ 3.
Technical specifications
Material base body | steel |
Surface | pre-galavanised |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
TRH M 8 | 0,80 kN |
TRH M10 | 0,80 kN |
TRH RM 8 | 0,80 kN |
TRH RM 10 | 0,80 kN |
Note: Working load per fixing point. The carrying capacity of the trapezoidal corrugated sheet may restrict the application.
Software
This product is available in the following software.
Installation
For drilling trapezoidal corrugated sheets, we recommend to use the Piercing Tool LOT 3; for fixing, we recommend a M8x100 (Part No. 138608) cross bolt.
Note: Each through bolt is to be secured by means of a locking nut; the same applies to dynamic loads.
Blind steel rivets or sheet metal screws may not be used in Sprinkler Systems.
Documents
- VdS Approval - Sikla Roof Hanger - G4820032
PDF (0.29MB)
