Structural Elements 120

Joining Plate AP

Application

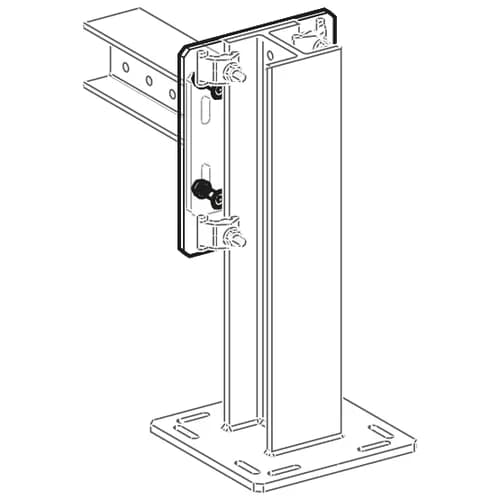

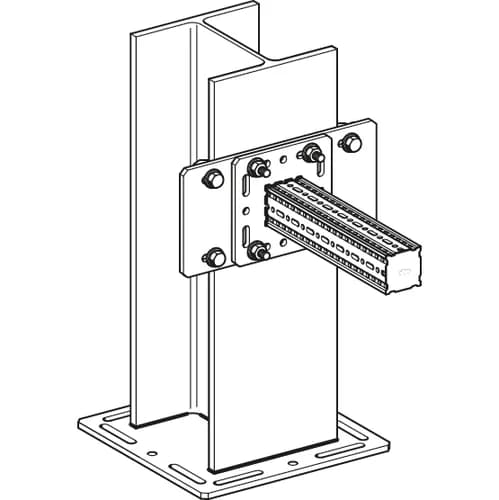

Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.

Scope of delivery

Joining Plate AP

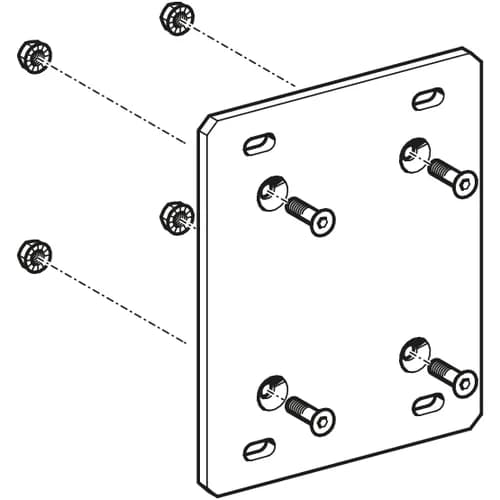

4 Countersink Screws M12 x 40
4 Hexagon Nuts M12
4 Washers

Installation

Connect the Joining Plate AP to the Beam Bracket TKO’s end plate by using the accessories above. Then continue with either heavy-duty anchors or Assembly Set 5P/Beam Clips as required by the building structure.

Technical Data

Type
Dimension of Base Plate
L x B [mm]
Perforation for
Connection to flange width
[mm]

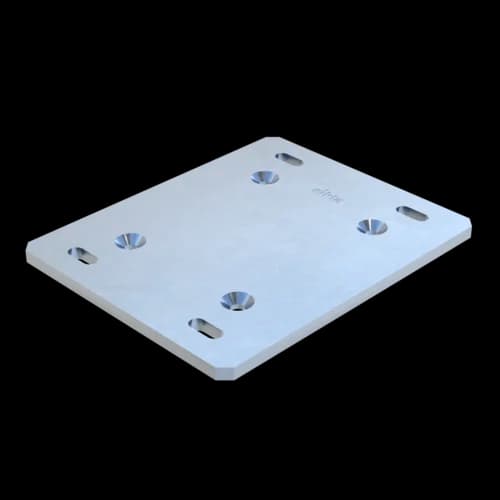

AP 121/160 320 x 260 x 12 M12 121 - 160

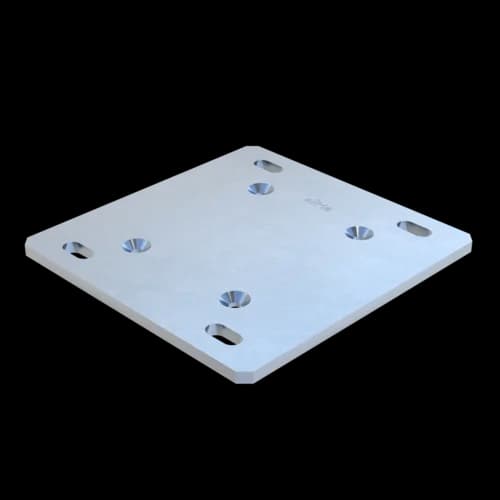

AP 161/200 320 x 310 x 12 M16 161 - 200

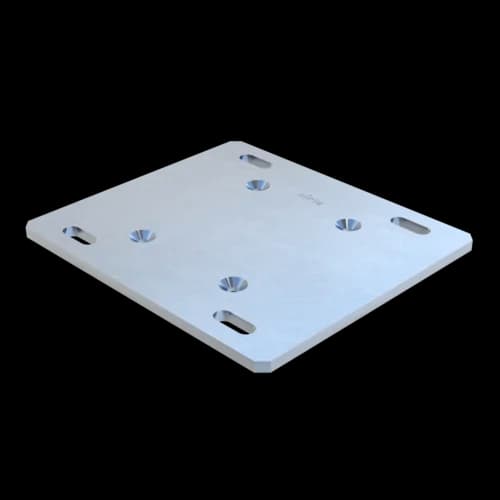

AP 201/300 420 x 220 x 12 M16 201 - 300

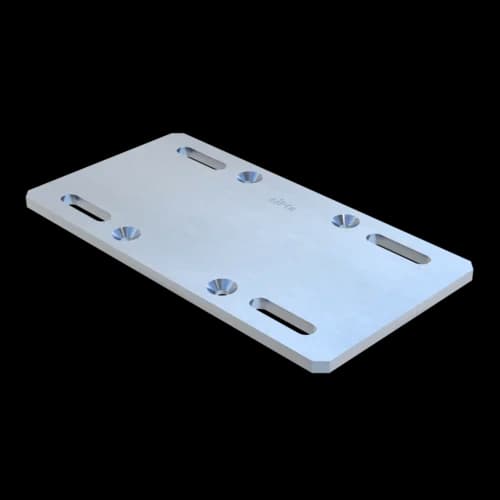

AP 301/310 440 x 220 x 12 M16 301 - 310

Material:
Joining Plate:
Steel, hot-dipped galvanised
Bolts:
Steel DIN 7991, class 8.8, Dacromet/delta seal
Nuts:
Steel, class 8, hot-dipped galvanised
Washers:
Steel, hot-dipped galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
AP 121/1607.91 183953
AP 161/2009.31 183962
AP 201/3008.51 183980
AP 301/3109.81 113129
