Structural Elements 120

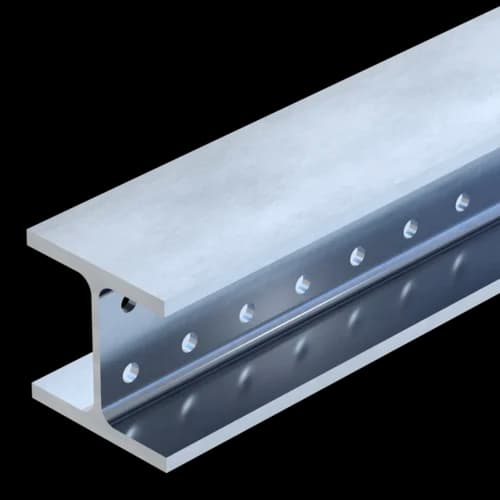

Beam Section TP 120

Application

Multifunctional beam section to create complex substructures and 3D units for a wide range of applications.
The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.

Technical Data

Type
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of inertia
[cm]
Torsional moment lt
[cm4 ]
Cross section A
[cm2 ]
TP 120
Wy: 142.00
Wz: 52.80
ly: 853.00
lz: 317.00
iy: 5.13
iz: 3.13
13.66
32.3

Alle Werte ber├╝cksichtigen die Lochung.

Type
H
[mm]
B
[mm]
t
[mm]
d
[mm]
e
[mm]
e1
[mm]
TP 120 120 120 11 13.5 50 50

Material:
Steel, HCP
TypeWeight
[kg/m]
Qty.
[m]
Part
number
TP 12027.56 117355
