Pipe Shoes

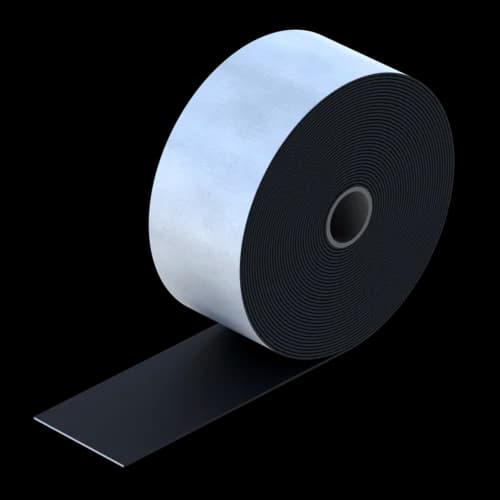

Rubber Profile SAL EPDM sk

Application

Einlage für Rohrschellen zur galvanischen Trennung (Vermeidung von Kontaktkorrosion).

Scope of delivery

In rolls, self-adhesive on one side, coated with peel-off foil on the adhesive side.

Technical Data

Material:
EPDM, black
Hardness:
70+/-5° Shore A
Temperature range:
-40°C up to +100°
Resistant against:
Aging, weather, ozone and strong bases
Conditionally resistant against:
Acids, brines and wear out
Not resistant against:
Oils and petrol
TypeWidth
[mm]
Thickness
[mm]
Roll
[m]
Qty.
[m]
Part
number
30 x 1.0301.02020 188075
40 x 1.0401.02020 188084
50 x 1.0501.02020 188093
60 x 1.0601.02020 188102
70 x 1.0701.02020 188111
