Pipe Shoes

Pipe Shoe LA - HV

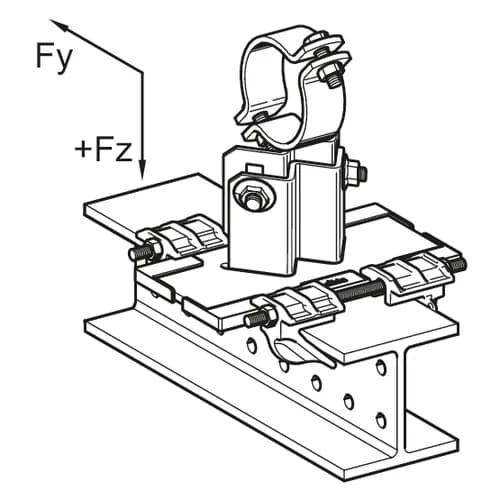

Application

Pipe Shoe - Single Clamp
For pipes on suitable surfaces. Height-adjustable in steps of 2.5mm. When resting on steel beams, a minimum flange width of 80 mm is recommended.

Scope of delivery

Upper and lower part are bolted together allowing height adjustment. The slide plate is fixed to the lower part.

Technical Data

Type
Height H
as delivered [mm]
Height H
Range [mm]
LA - HV 90 90 88.5 ... 113.5
LA - HV 150 150 116 ... 168.5
LA - HV 200 200 171 ... 223.5

Tightening torque screw connections:

Clamping bolts
tightening torque
[Nm]
height adjustment
tightening torque
[Nm]
DN 15 - 40 40 bolts in the bar 80
DN 50 - 150 50 bolts in the bar 80

Dimensions:
Metal plate:
L = 250 mm x B = 100 mm
Slide plate incl.:
L = 256 mm x B = 105 mm

Material:
Metal plates:
Steel, HCP
Bolts, Nuts:
Steel, HCP
Slide Plate:
Polyamide 6.0, glass fibre reinforced, black
Temperature range slide plate:
-20°C to +130°C
Media temperature tf :
-20°C to +300°C (if tf > 270°C, remove slide plate)

Approvals / Compliance

Note: HV 200 - minimum quantity and delivery time on request

TypeD (pipe)
[mm]
W
[kg]
Quantity
[pack]
Part
number
LA - HV 90 DN 1521.32.81 112386
LA - HV 90 DN 2026.92.81 112387
LA - HV 90 DN 2533.72.91 110035
LA - HV 90 DN 3242.42.91 110036
LA - HV 90 DN 4048.33.01 110037
LA - HV 90 DN 5060.33.11 110038
LA - HV 90 DN 6576.13.21 110039
LA - HV 90 DN 8088.93.31 110040
LA - HV 90 DN 100114.33.61 110041
LA - HV 90 DN 125139.73.71 110042
LA - HV 90 DN 150168.34.81 110043

LA - HV 150 DN 1521.33.11 112388
LA - HV 150 DN 2026.93.11 112389
LA - HV 150 DN 2533.73.21 110044
LA - HV 150 DN 3242.43.21 110045
LA - HV 150 DN 4048.33.31 110046
LA - HV 150 DN 5060.33.51 110047
LA - HV 150 DN 6576.13.61 110048
LA - HV 150 DN 8088.93.61 110049
LA - HV 150 DN 100114.33.91 110050
LA - HV 150 DN 125139.74.11 110051
LA - HV 150 DN 150168.35.11 110052

LA - HV 200 DN 1521.33.51 112390
LA - HV 200 DN 2026.93.51 112391
LA - HV 200 DN 2533.73.51 110053
LA - HV 200 DN 3242.43.61 110054
LA - HV 200 DN 4048.33.61 110055
LA - HV 200 DN 5060.33.81 110056
LA - HV 200 DN 6576.13.91 110057
LA - HV 200 DN 8088.93.91 110058
LA - HV 200 DN 100114.34.31 110059
LA - HV 200 DN 125139.74.41 110060
LA - HV 200 DN 150168.35.41 110061
