siFramo 100

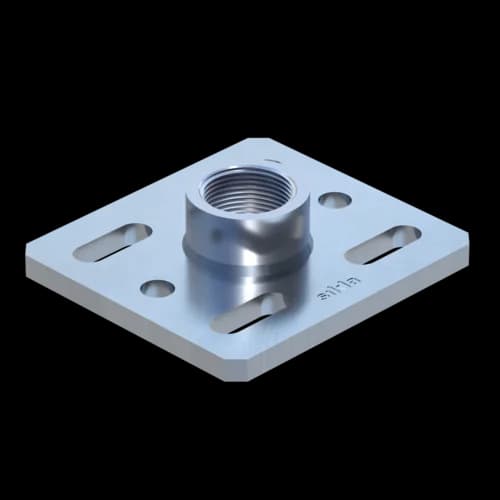

Mounting Plate GPL F 100

Application

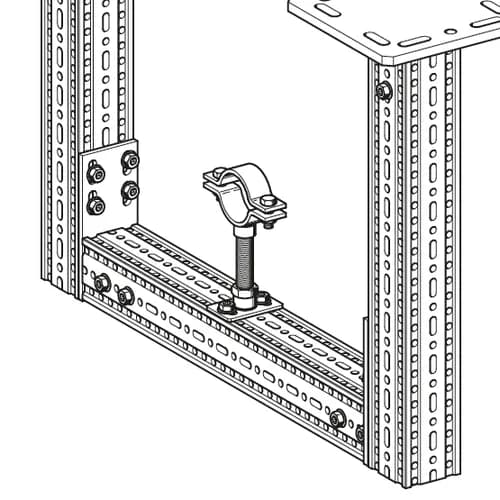

Interface component to connect threaded bar and threaded tube to Beam Section F100.

Installation

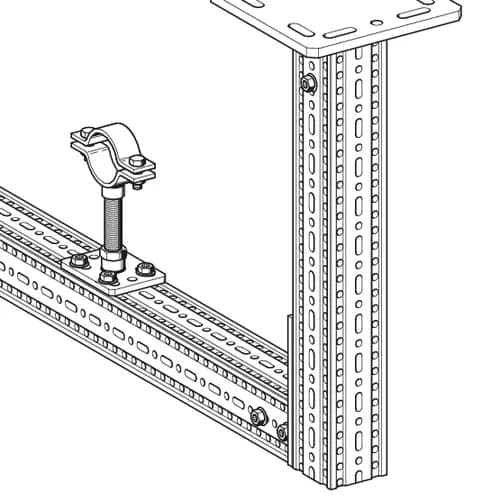

Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.

Technical Data

Type
Tension
[kN]
Lateral force
[kN]

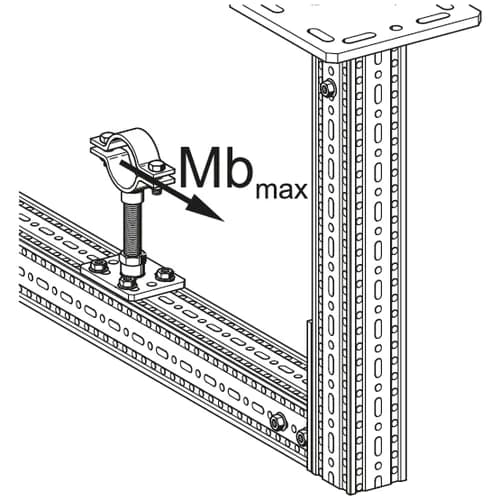

Perm. bending moment
[Nm]

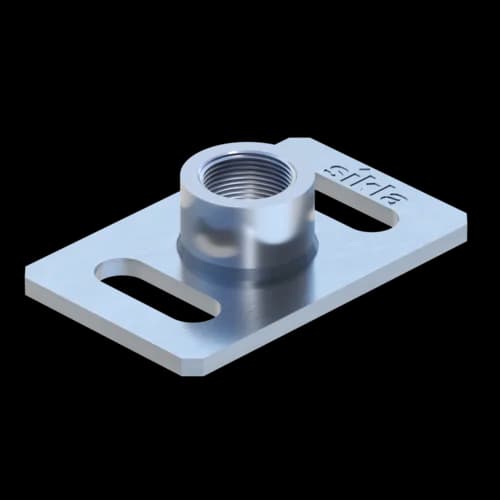

GPL F 80-1/2" 8,0 13,0 53

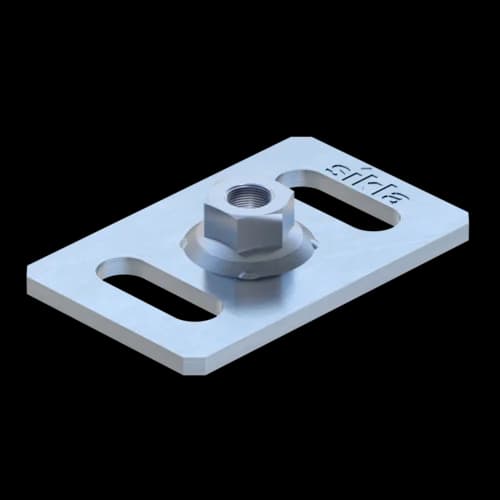

GPL F 80-M10 8,0 13,0 15

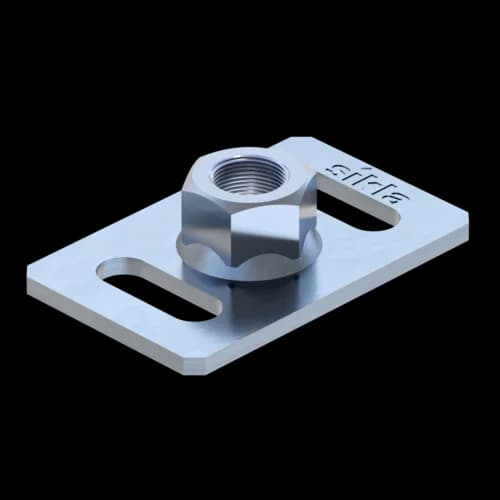

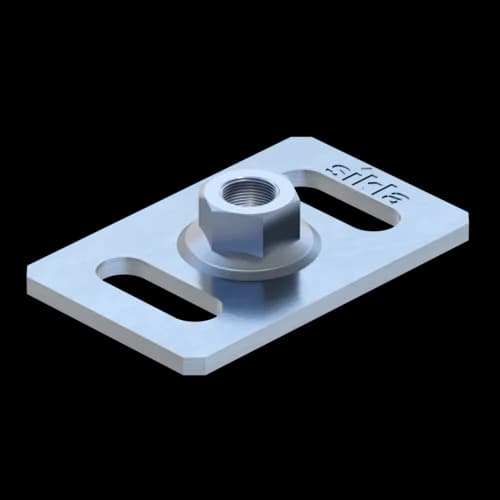

GPL F 80-M12 8,0 13,0 26
GPL F 80-M16 8,0 13,0 62
GPL F 100-1/2" 8,0 13,0 53
GPL F 100-M10 8,0 13,0 15
GPL F 100-M12 8,0 13,0 26
GPL F 100-M16 8,0 13,0 62

Dimensions of Base plate:
100 x 50 x 4 mm
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
GPL F 100-1/2"0.250 113089
GPL F 100-M100.250 113338
GPL F 100-M120.250 113646
GPL F 100-M160.250 113090
