Application

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

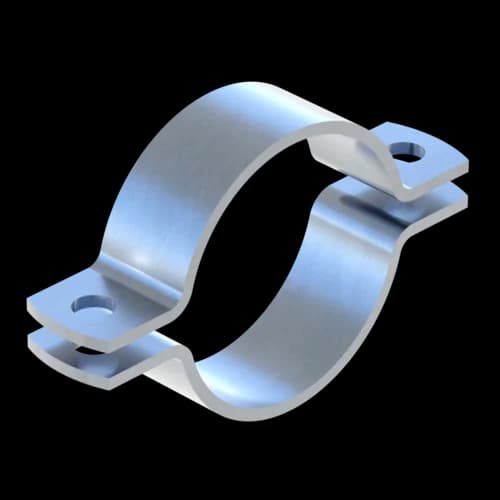

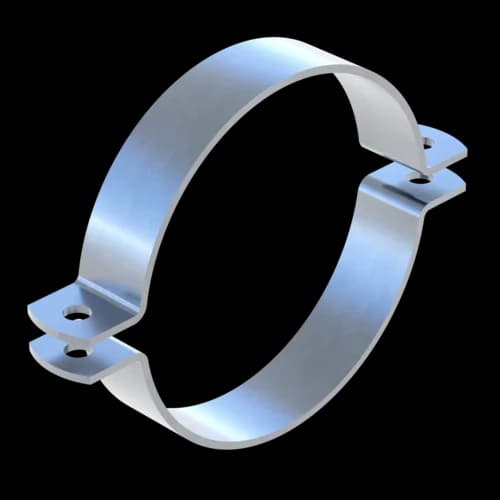

Two-piece pipe clamp without clamping bolts and nuts.

Installation

Particularly suitable for two-point mountings.

Technical Data

Size [mm]
Max. perm.
working load (tension)
18 - 71 5.0 kN
74 - 231 6.0 kN

Material:
Stainless steel A4
Size range
[mm]
Material
W x th
[mm]
Recommended
clamping bolts
B
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
18 - 2225 x 3M8 x 2570500.0850 172433
24 - 2825 x 3M8 x 2577570.0950 172442
30 - 3425 x 3M8 x 2584640.1050 172451
35 - 3725 x 3M8 x 2587670.1150 172460
40 - 4425 x 3M8 x 2595750.1250 172469
47 - 5125 x 3M8 x 25102820.1350 172478
54 - 5825 x 3M8 x 25109890.1450 172487
59 - 6325 x 3M8 x 25115950.1550 172496
67 - 7125 x 3M8 x 251231030.1650 173081
74 - 7830 x 3M10 x 301401160.2325 172505
81 - 8530 x 3M10 x 301471230.2525 173090
86 - 9030 x 3M10 x 301521280.2625 172514
94 - 9830 x 3M10 x 301601360.2825 173099
102 - 10830 x 3M10 x 301701460.3025 173144
108 - 11430 x 3M10 x 301761520.3025 172523
116 - 12230 x 3M10 x 301841600.3125 173108
133 - 14040 x 4M12 x 352171840.6810 172532
145 - 15240 x 4M12 x 352291960.7110 173117
159 - 16940 x 4M12 x 352452120.7510 172541
170 - 18040 x 4M12 x 352572240.8310 173126
198 - 20740 x 4M12 x 352842510.9410 172550
210 - 21940 x 4M16 x 503042690.9910 172559
222 - 23140 x 4M16 x 503162811.0410 173135
