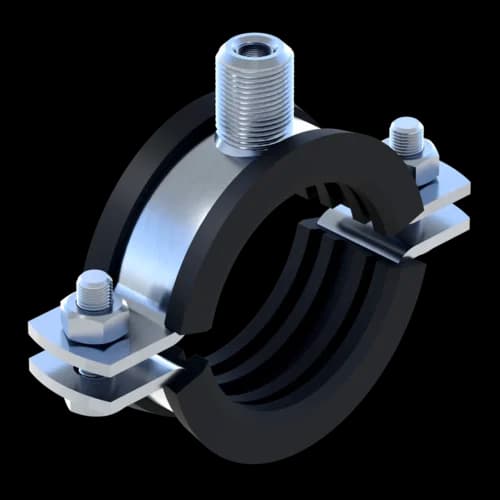

Stabil D-2G/-3G ss w/Lining

Application

For the installation of pipes required for all M&E services in industrial, residential and public buildings.
Particularly suitable for soundproof pipe installation according to DIN 4109.

Scope of delivery

Two-piece pipe clamp with clamping bolts and nuts (supplied loose).

Installation

Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1" using an adapter.

Technical Data

Size range
[mm]
Max. adm.
load (tension)
Tightening torque
[Nm]
18 - 63 1,5 kN 3
74 - 114 2,0 kN 5
133 - 168 4,0 kN 10
198 - 219 6,0 kN 20

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Material:
Pipe clamp:
Stainless steel A4
Sound absorption lining:
SBR/EPDM, black (see chapter "Sound Absorption Products")

Approvals / Compliance



This product has been awared the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

Size range
[mm]
Thread
connection
Material
W x th
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
18 - 202G25 x 3770.1650 172703
21 - 242G25 x 3840.1850 172712
25 - 292G25 x 3870.1950 172721
31 - 352G25 x 3950.2050 172730
38 - 422G25 x 31020.2250 172739
46 - 502G25 x 31090.2450 172748
51 - 552G25 x 31150.2550 172757
58 - 632G25 x 31230.2750 172766
74 - 782G30 x 31470.3925 172775
86 - 903G30 x 31600.4625 172784
100 - 1063G30 x 31760.4925 173162
108 - 1143G30 x 31840.4925 172793
133 - 1403G40 x 42291.0310 172802
158 - 1683G40 x 42571.1410 172811
198 - 2073G40 x 43041.5010 172820
210 - 2193G40 x 43161.5410 172829
