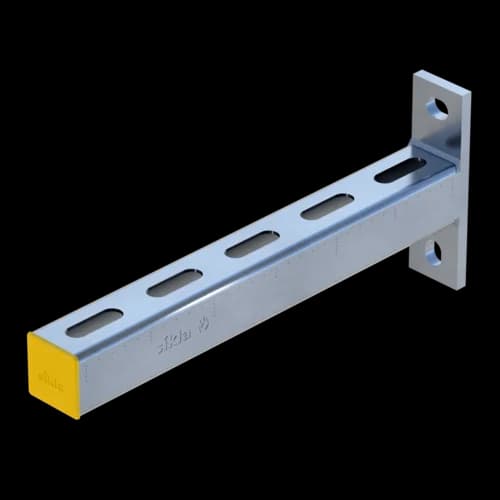

Cantilever Bracket AK ss

Application

Ready-to-use brackets mainly for mounting pipes to walls.

Scope of delivery

Wall plate and channel welded. Supplied with End Cap.

Installation

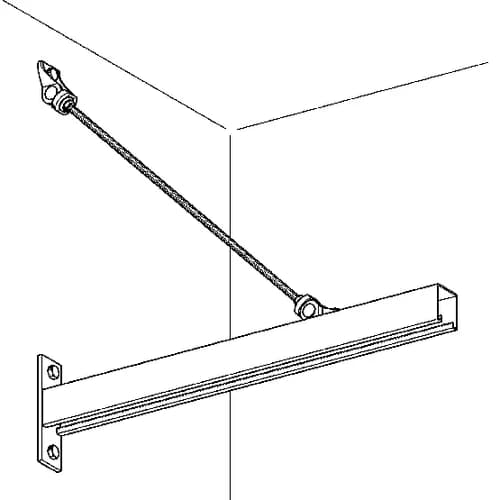

When used in combination with slide elements, a tie rod is absolutely essential for absorbing the forces running along the centre line of the pipe.

Technical Data

For load capacities, please see the charts of Cantilever Bracket 41/41 (galvanised)

Material:
Stainless steel A4
TypeL
[mm]
Wall plate
[mm]
b
[mm]
Dimensions of
elongated hole
[mm]
W
[kg]
Quantity
[pack]
Part
number
41/41 - 200196132 x 40 x 810013 x 180.7010 115520
41/41 - 260258132 x 40 x 810013 x 180.7910 115539
41/41 - 320321132 x 40 x 810013 x 180.9210 115548
41/41 - 445446132 x 40 x 810013 x 181.1910 115557
