Stainless Steel Products

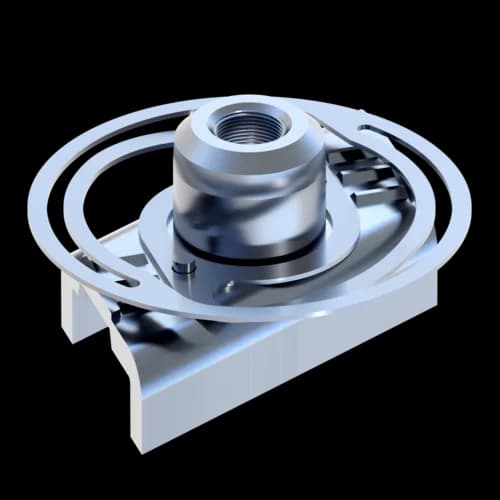

Adapter NT CC 41 DIN 3015 ss

Application

For efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41. Particularly useable for assembly in vertical channels or positions difficult to access, this piece replaces the "3rd hand" and offers following further advantages:

  • Compatible with all Sikla Channels MS 41, regardless of the channel's height.
  • No getting stuck of screw heads while moving inside the channel.
  • Plane fixation without projecting after tightening.

Scope of delivery

Channel nut, spring and thread connection pre-assembled.

Installation

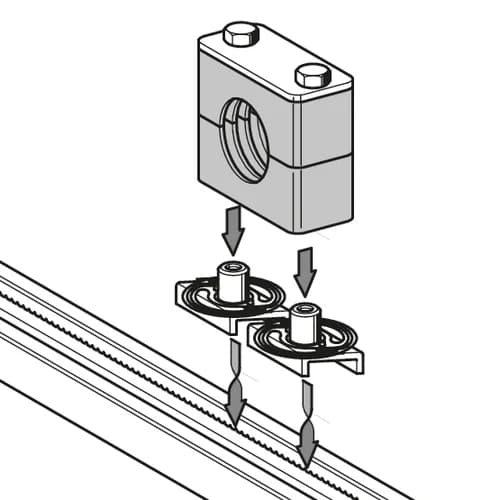

After inserting the Adapter NT CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.

Technical Data

Material:
Channel nut, thread connection:
Stainless steel 316 (A4)
Spring washer:
Spring steel sheet, rustproof

Pipe clamps DIN 3015-1 (series A, light model range)

Clamp size
Pipe outer-dia. [mm]
Connection with

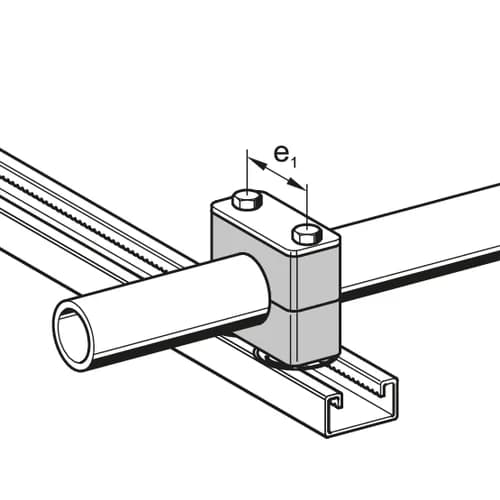

e1
0 6 up to 12 1 x Adapter NT CC 41 ss M6
1 6 up to 12 2 x Speed Nut NT CC 41 ss M6 20 1)
2 12.7 up to 18 2 x Speed Nut NT CC 41 ss M6 26 1)
3 19 up to 25 2 x Speed Nut NT CC 41 ss M6 33 1)
4 26.9 up to 30 2 x Adapter NT CC 41 ss M6 40
5 32 up to 42 2 x Adapter NT CC 41 ss M6 52
6 44.5 up to 57 2 x Adapter NT CC 41 ss M6 66
7 57.2 up to 76.1 2 x Adapter NT CC 41 ss M6 94
8 88.9 up to 101.8 2 x Adapter NT CC 41 ss M6 120

Pipe clamps DIN 3015-2 (series C, heavy-load model range)

Pipe size
Pipe outer dia. [mm]
Connection with
e1
1 6 up to 18 2 x Speed Nut NT CC 41 ss M10 33 1)
2 19 up to 30 2 x Adapter NT CC 41 ss M10 45
3 30 up to 42 2 x Adapter NT CC 41 ss M10 60
4 38 up to 70 2 x Adapter NT CC 41 ss M12 90

1)

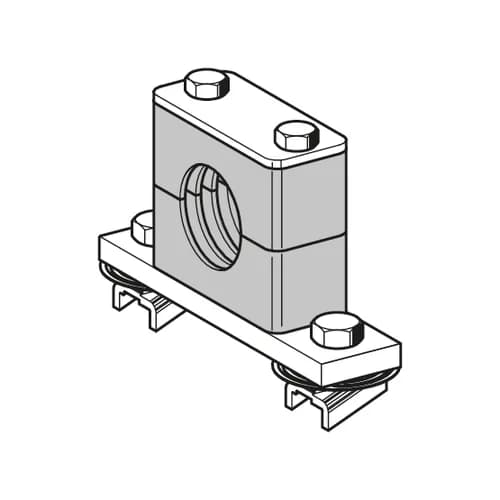

For these hole distances the screwing plate of the clamp - see image 4 as well as each two Hexagon Bolts and Speed Nuts NT CC 41 are required.

Pipe clamps DIN 3015-3 (series B, double model range)

Pipe size
Pipe outer dia. [mm]
Connection with
1 6 up to 12 1 x Adapter NT CC 41 ss M6
2 12.7 up to 18 1 x Adapter NT CC 41 ss M8
3 19 up to 25 1 x Adapter NT CC 41 ss M8
4 26.9 up to 30 1 x Adapter NT CC 41 ss M8
5 32 up to 42 1 x Adapter NT CC 41 ss M8
TypeW
[kg]
Quantity
[pack]
Part
number
M60.04100 110008
M80.04100 110017
M100.04100 110009
M120.07100 110010
