INNOVATIVE PIPE
SUPPORT SOLUTIONS
Sound Absorption Products

Sound Absorption Unit SDE

Application

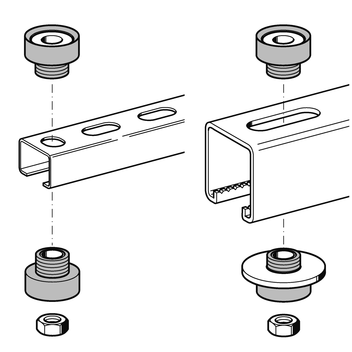

Sound Absorption Element for use in combination with Sikla Channels in ducting systems (suitable also for sound proof requirements according to DIN 4109).

Scope of delivery

With inserted and retained washer.

Technical Data

Material:
TPE, black
Max. admissible load:
0,3 kN
Temperature range:
-50°C up to +110°C
Fire resistance:
B2 according to DIN 4102, non-dripping
Hardness:
50°+/-5° Shore
Washer:
Steel, galvanised
TypeFor channelThread
connection
Total-
Height
[mm]
Height
of collar
[mm]
W
[kg]
Quantity
[pack]
Part
number
27M81570.01100 197973
4141M8/M1018100.01100 107802
