Application

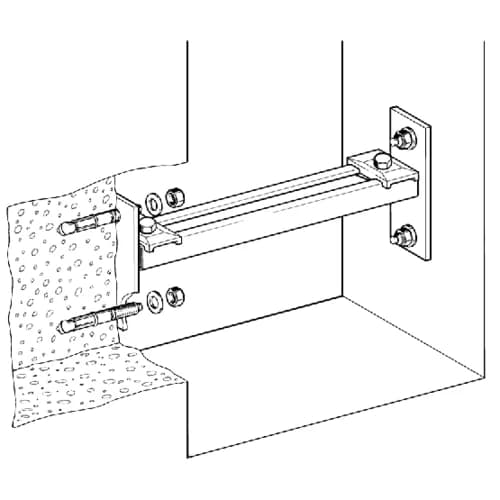

This T-Bracket serves as connecting element for cross bars between two channels.

Note: For one cross bar always two T-Brackets should be used.

Scope of delivery

Completely pre-assembled with CC-Speed Nut and Hexagon Bolt.

Technical Data

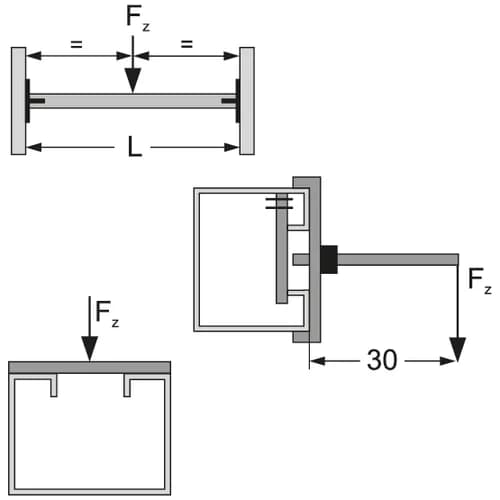

Curve A: MV 41 resp. MH 41 with channel 41/21/1.5 (M8)
Curve B: MV 41 with channel 41/41/2.5 (M8)
Curve C: MH 41 with channel 41/41/2.5 (M10)
Curve D: MV 41 with channel 41/52/2.5 (M10)
Curve E: MH 41 with channel 41/52/2.5 (M10)




Material:
Steel, electro-galvanised
Typeb x s
[mm]
L
[mm]
d
[mm]
W
[kg]
Quantity
[pack]
Part
number
MH 4140 x 4135130.2910 143800
MV 4140 x 4135130.2910 143794
