Application

In particular useful when installing in vertical channels or in places of difficult access.
Further advantages:

  • For all Sikla Channels MS 41, independent of the height of the channel.
  • No getting stuck on bolt heads when sliding in the channel.
  • No appearance of settlement after tightening.

Scope of delivery

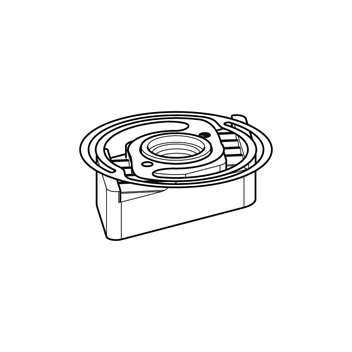

Channel Nut and Spring are tightely connected.

Installation

After inserting the Speed Nut into the channel opening, it is - by exerting slight pressure on it - turned to the right as far as it will go; deinstallation may be effected by following the instructions in reverse order.
Installation and deinstallation do not require tools and may be repeated several times.

Technical Data

M6
M8
M10
M12
M16
Tightening torque 8.8 1) [Nm] 10 25 40 80 80

1)
Using lower steel classes, the value are to be reduced accordingly.

Channel
thickness
[mm]
M6
FZ ≤
[kN]
M8 2)
FZ ≤
[kN]
M10 2)
FZ ≤
[kN]
M12
FZ ≤
[kN]
M16
FZ ≤
[kN]

M6
FQ ≤
[kN]
M8
FQ ≤
[kN]
M10 2)
FQ ≤
[kN]
M12
FQ ≤
[kN]
M16
FQ ≤
[kN]
1.5 3.0 3.0 3.0 7.5 7.5   0.7 1.8 2.9 7.5 6
2.0 3.2 5.8 5.8 10 10   0.9 2.1 3.4 9 6
2.5 3.2 5.8 5.8 11 11   1.0 2.6 4.1 9 6
3.0 3.2 5.8 5.8 13 13   1.1 2.8 4.4 9 6

Note: The permissible load capacities of the channels are to be respected.

Material:
Nut:
Steel class 5.6, electro-galvanised
Spring washer:
Sheet metal spring steel, rustproof

Approvals / Conformity



This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

2) Tested load values 'connection design' according to certificate 2010-07/2010-09.

TypeW
[kg]
Quantity
[pack]
Part
number
CC 41-M60.0350 180200
CC 41-M80.0350 180209
CC 41-M100.0350 180218
CC 41-M120.0650 182252
CC 41-M160.0550 182261
