Application

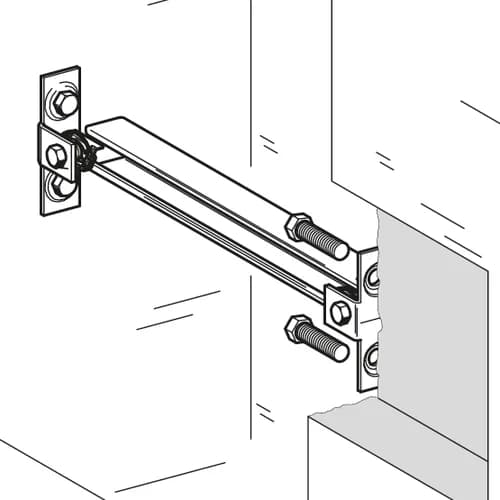

Used for installing crossbars between Channels MS 27 or building structures.
Note: Each crossbar requires two T Brackets.

Scope of delivery

Pre-assembled with Holding Bracket and Hexagon Bolt.

Technical Data

Material:
Steel, electro-galvanised
Typeb x s
[mm]
L
[mm]
d
[mm]
W
[kg]
Quantity
[pack]
Part
number
MV 2726 x 38810.50.0810 195871
