Application

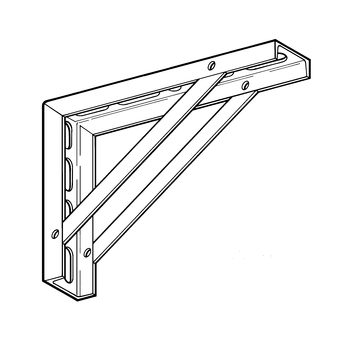

Sikla Support Brackets may be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U-bolt), be arranged in vertical position or be suspended (Grub Screws).
In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.

Technical Data

Material:
Steel, HCP

For further details regarding dimensions and loads, see chapter "Brackets" (galvanised versions).

TypeChannelW
[kg]
Quantity
[pack]
Part
number
100/100-40-0.2325 163930
150/150-0.6025 181685
300/200U 50/252.281 162531
550/350U 50/254.621 162610
725/400U 65/4212.72 1 151041
880/550U 65/4218.43 1 151050
