Application

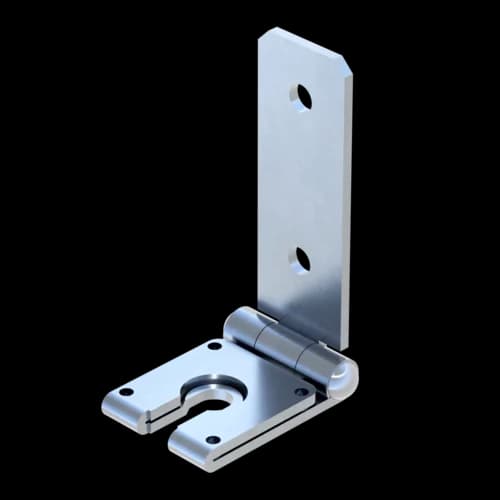

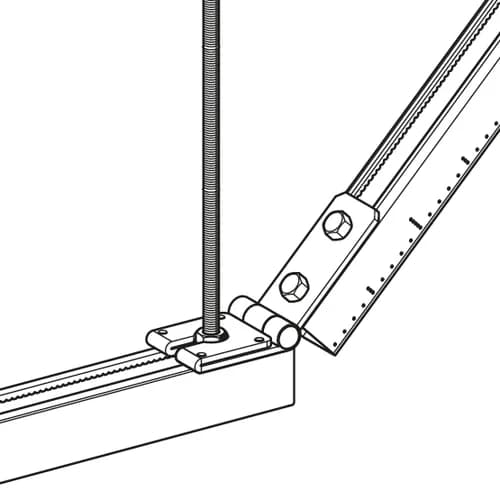

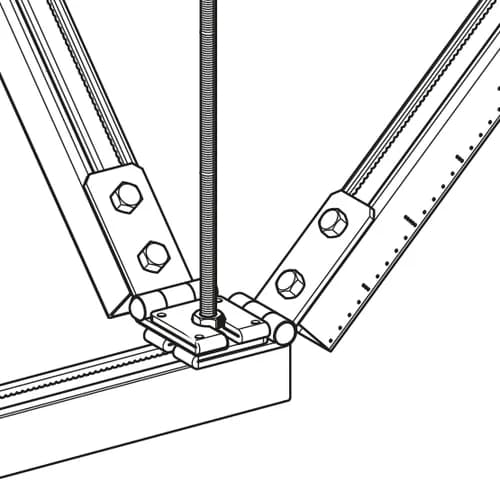

The Joint JOI R is used for bracings of mounting systems, which are of central importance especially in case of seismic stress. Due to its keyhole shaped design the Joint can be installed subsequently. For the installation directly to a Channel 41 the four pins and two fixing points guarantee a reliable rotation lock. For two bracings the Joint JOI R can also be piled. The rotation lock for the installation to an existing structure depends on the already used components. In case of the application of a Block PB 41 a rotation lock is given. In case of the application of a Holding Bracket or a washer a roation lock is only partly given.

Technical Data

Type
suitable for
20 Hexagon nut M10 and 3/8"-UNC
23 Flange nut M10, hexagon nut M12 and 1/2"-UNC

Nominal load:
2.0 kN
Tightening torque:
50 Nm
Material:
Steel, galvanised

The permissible maximum torsional moment of the channel (44.5 Nm) has to be respected.

Typea
[mm]
b
[mm]
d
[mm]
l
[mm]
W
[kg]
Quantity
[pack]
Part
number
2062.55010.51260.3350 116576
2362.55010.51260.3350 116809
