Fixings and Fastenings

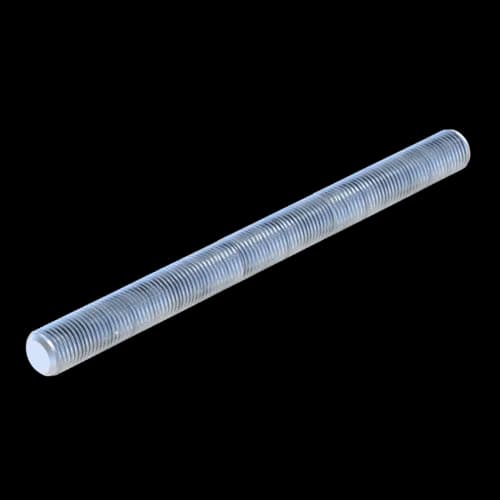

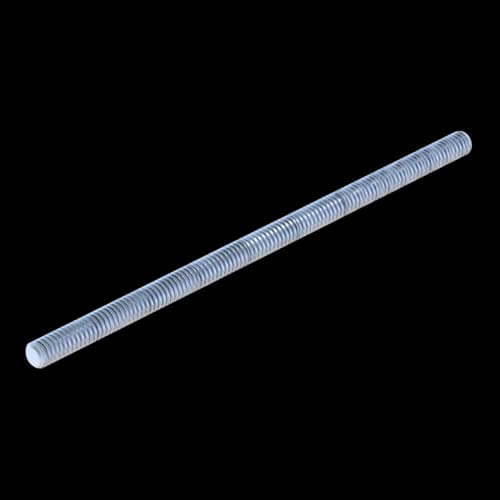

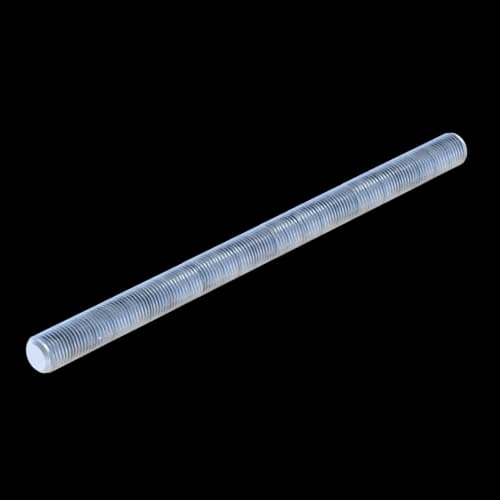

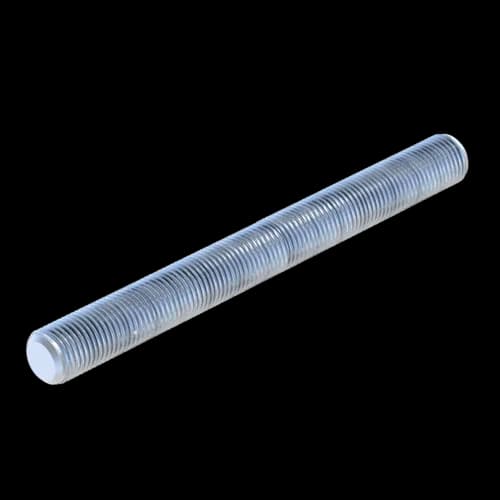

Threaded Rod GST

Technical Data

Thread
Working load (tension)
M8 8.0 kN
M10 12.5 kN
M12 18.1 kN
M16 33.8 kN

Material:
Steel class 4.8, electro-galvanised
TypeLengthWeight
[kg/m]
Qty.
[m]
Part
number
M81 m0.3125 124559
M82 m0.3150 142696
M83 m0.3130 142739

M101 m0.4925 124568
M102 m0.4950 142702
M103 m0.4930 142748

M121 m0.7025 143192
M122 m0.7020 142711
M123 m0.7030 142757

M161 m1.3010 110817
M162 m1.3020 142720
M163 m1.3015 142766
