Fixings and Fastenings

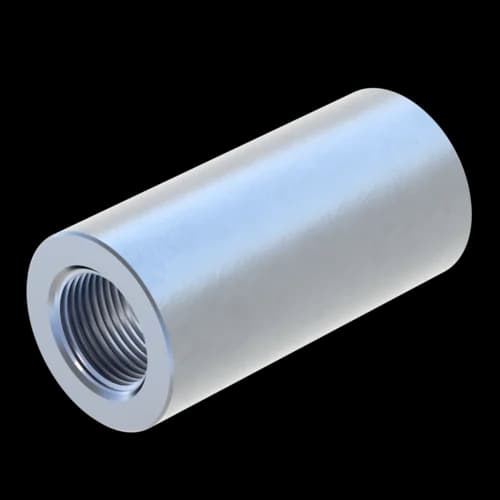

Round Rod Coupling AD RD f/f

Application

Element for joining two threaded rods, threaded tubes,
as well as distance, e.g. in combination with Slide Set and Pipe Clamp.
For pipe clamps with thread 3/8" the Adapter AD f/f 3/8"/M16 (part no.111715) is used.

Technical Data

Material:
Steel, electro-galvanised
TypeLength
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 30300.01100 157232
M10 x 30300.01100 157250
M12 x 35350.02 50 157278
M16 x 45450.07 50 157296
M16 x 1001000.1120 191108
M16 x 1501500.1620 191117
1/2" x 45450.0620 191126
1/2" x 1001000.1420 191135
1/2" x 1501500.2120 191144
