Fixings and Fastenings

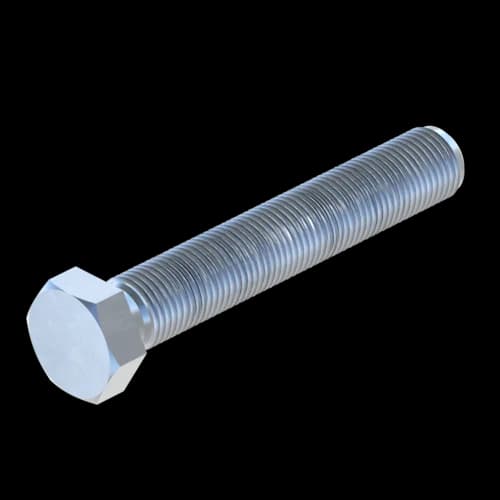

Hexagon Bolt SKT

Technical Data

Thread
Working load (tension)
M8 15.6 kN
M10 24.7 kN
M12 35.9 kN
M16 66.7 kN

Satisfies
DIN 933
Material:
Steel class 8.8, electro-galvanised
TypeLength
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8/20 200.01100 138459
M8/25 250.01100 138431
M8/30 300.02100 138574
M8/40 400.02100 138440
M8/60 600.02100 114705
M8/80 800.03100 114714
M8/100100 0.04100 138608
M8/1101100.04100 124975
M10/20 200.02100 138617
M10/25 250.02100 138468
M10/30 300.03100 138626
M10/40 400.03100 114158
M10/60 600.04100 138635
M10/80 800.05 50 114723
M10/1001000.06 50 114732
M10/1201200.07 50 138644
M12/25 250.04100 138662
M12/30 300.04100 138477
M12/40 400.05 50 138671
M12/60 600.06 50 138680
M12/80 800.07 50 138705
M12/1001000.09 50 138714
M12/1201200.10 50 114750
M16/25 250.07 50 138723
M16/30 300.08 50 138732
M16/45 450.10 50 138741
M16/60 600.12 50 138556
M16/80 800.14 25 138750
M16/1001000.17 25 138769
M16/1201200.19 25 114778
