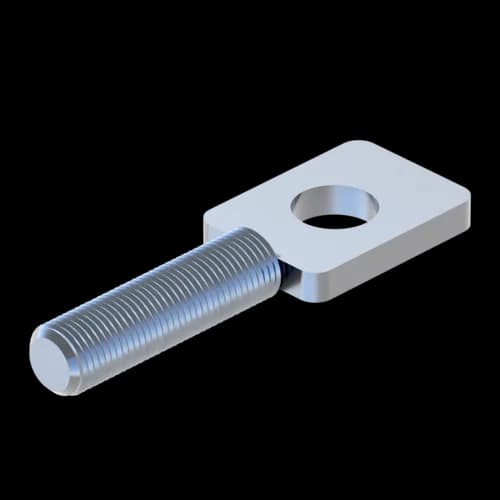

Flat Leaf Bolt SCR BS
Group: 1303
For connecting the Stabil D-A pipe clamp via its clamp tabs
Enables adaptation of threaded rods for flexible mounting options
Overview of Types
General Information
For connecting the Stabil D-A pipe clamp via its clamp lugs and for adapting threaded rods.
Certification
Satifies the VdS standards.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
SCR BS M 8x 20 | 5,50 kN |
SCR BS M 8x 40 | 5,50 kN |
SCR BS M10x 20 | 5,80 kN |
SCR BS M10x 40 | 5,80 kN |
SCR BS M12x 40 | 7,30 kN |
SCR BS M16x 25 | 13,80 kN |
