Fixed Point Packages

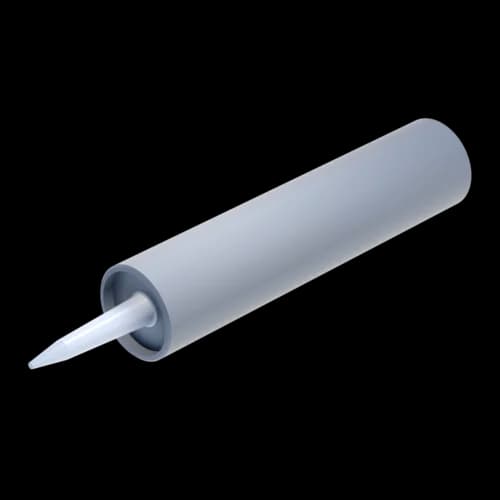

Sealant DP 30/45

Application

For diffusion-proof installation of Sikla Chilled Water Fixed Point Clamp.

Scope of delivery

In cartridges of 310 ml.

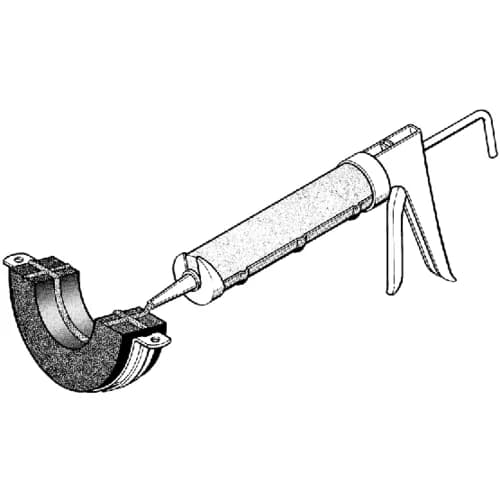

Installation

Prior to fitting a Chilled Water Fixed Point Clamp, a thin ring-shaped Sealant 30/45 is to be applied to the enhanced ring. After mounting of the clamp, check if the cant of the PUR-clamp fits exactly. The most favourable processing temperature is 20°C up to 25°C.

Technical Data

Steam diffusion resistance: µ ~ 10 000
Temperature range: -80°C up to +90°C
Silicone-free
TypeW
[kg]
Quantity
[pack]
Part
number
30/450.491 146283
