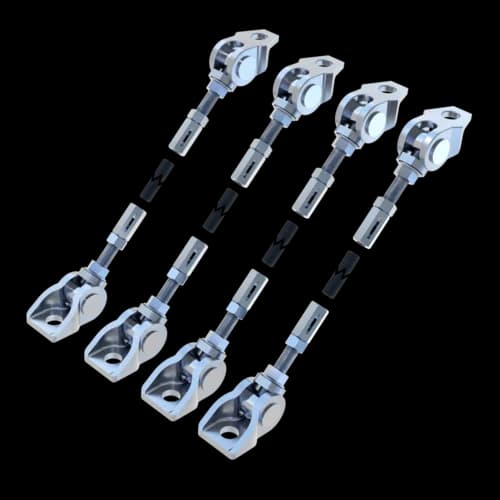

Mounting Kit VP A/B

Group: 1380

Assembly of sloped supports for Fixed Points

Direct mounting with bevelled Universal Joint UG FP possible

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Assembly of sloped supports for Fixed Points. With the beveled Universal Joint UG FP, the sloped supports could be mounted directly to the Fixed Point Clamp.

Certification

Technical specifications

Material base body	steel
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Software

This product is available in the following software.

Installation

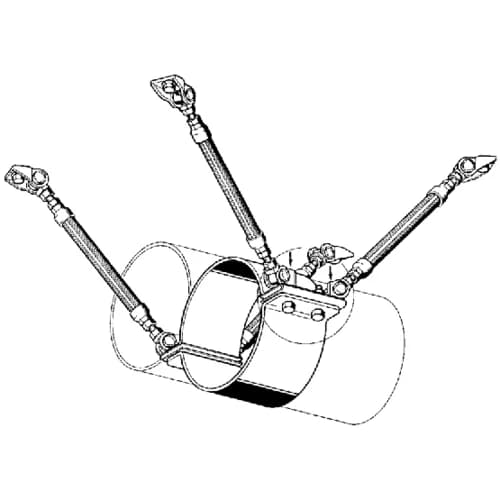

With the optionally cut to length Threaded Tubes and Threaded Studs the Universal Joints UG and UG FP each are connected to a sloped support each. Afterwards the four sloped supports are directly assembled with the UG FP and the Fixed Point Clamp.

Info	Type	Weight	Quantity	Part number
	VP A/B- M12	3,846 kg/pcs.	1 pcs.	160663

	VP A/B- M16	4,652 kg/pcs.	1 pcs.	160672

	VP A/B- 1/2''	4,047 kg/pcs.	1 pcs.	160681

	VP A/B- 3/4''	4,8 kg/pcs.	1 pcs.	160690

	VP A/B-1''	5,388 kg/pcs.	1 pcs.	160706
