Brackets

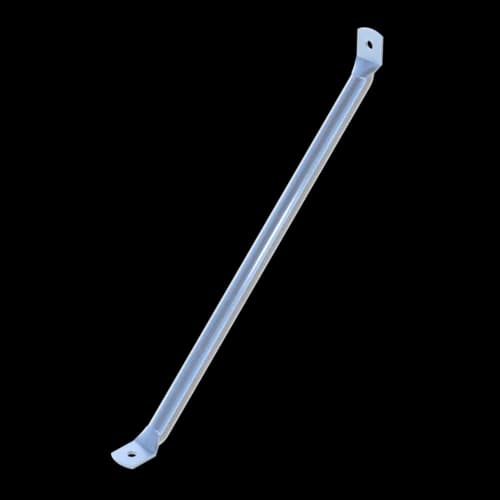

Tie Rod STR

Application

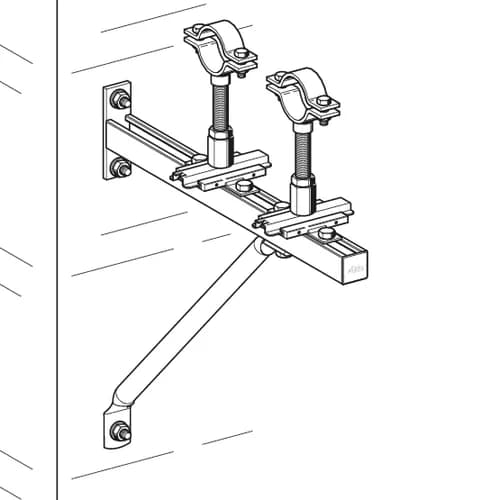

Tie Rods cater for the lateral forces applied to Support Brackets. Such lateral forces always occur when pipes are laid, in particular when sliding elements are fixed onto Support Brackets, and must be safely absorbed by means of Tie Rods fixed to the brackets.
Otherwise the Support Brackets run the accute risk of being pulled out of their anchoring components by the forces exerted.

Installation

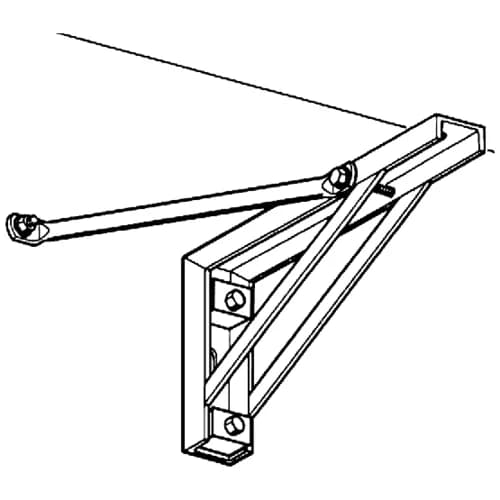

Fix the Tie Rod to the bore especially made for such purpose at the overhanging leg of the Support Bracket using the recommended hexagon bolt (see table).

Technical Data

Type
Recommended bolt for
attachement to Support Bracket
Permissible load
(tension and pressure)
Installation
dimension A
300/200 M10 x 80 7.0 kN 210
550/350 M10 x 80 7.0 kN 365
725/400 M10 x 100 12.0 kN 400
880/550 M10 x 100 12.0 kN 550

Material:
Cold-worked tube DIN 2448, HCP
TypePipeBore
[mm]
W
[kg]
Quantity
[pack]
Part
number
300/200R 1/2"110.2610 125967
550/350R 1/2"110.5010 125994
725/400R 3/4"110.9010 151908
880/550R 3/4"111.1710 151892
