Brackets

Fixing Bracket MW S

Application

Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.

Sprinkler systems: See "Technical Data". Types 60/30/90 and 90/60/90 are designed for attachment of pipes to wooden truss according to VdS CEA-standard 15.2.2.

Technical Data

Type
Working load
45/30/90° 3.5 kN
60/30/90° 3.5 kN
70/40/90° 2.0 kN
60/40/90° 7.5 kN
90/60/90° 7.5 kN

For Sprinkler systems: Application of 60/30/90 and 90/60/90 to wooden truss

Single Bracket with wooden screw


Double Bracket with threaded bolt



"d" depending on NB:


≤ DN 50: 2 x 6 mm
> DN 50 ≤ DN 100: 2 x 8 mm
> DN 100 ≤ DN 150: 2 x 10 mm

Material:
Angle steel profile, electro-galvanised
TypeAngle steel
profile DIN 1029
B
[mm]
b
[mm]
d
[mm]
s
[mm]
W
[kg]
Quantity
[pack]
Part
number
45/30/90°45/30/4301311-0.0750 115380
60/30/90°60/30/5301011300.0925 156505

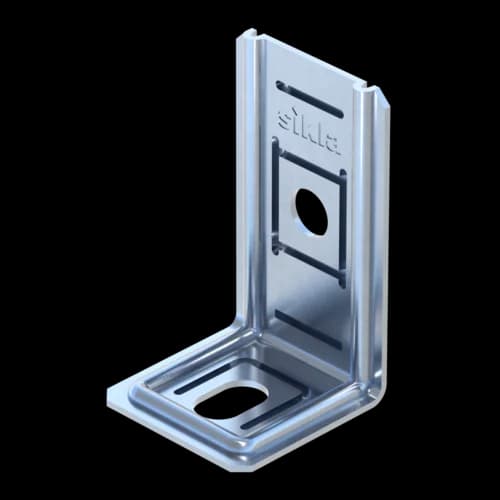

70/40/90°-4017/3510.5-0.0650 191963
60/40/90°60/40/6402013-0.1625 115399

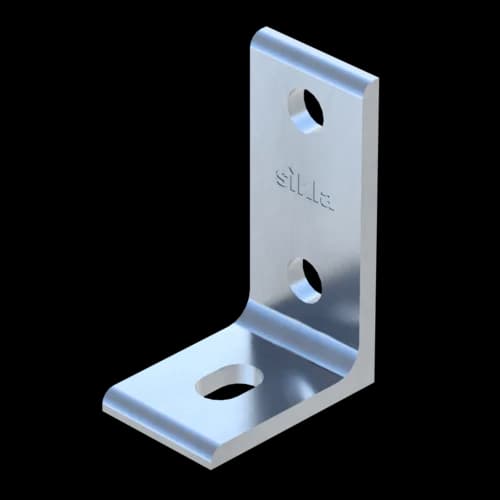

90/60/90°90/60/6401513500.2525 114820
