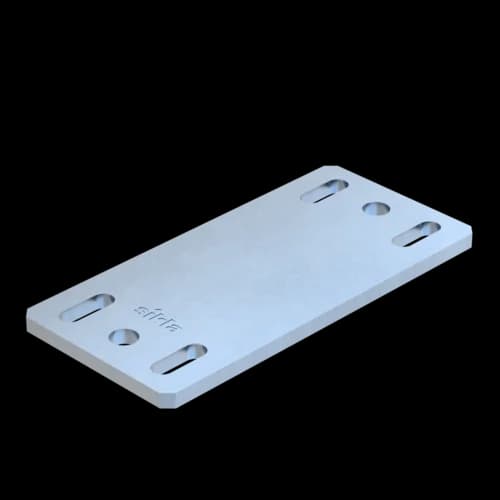

Welding Plate SPL G F100 HCP
Group: A430
Part number 117834
Connecting element for welding Load Chains and spring hangers to the TP F 100 profile
Welding Plates SPL with HCP surface for excellent weldability
Technical Data
BP | 100 mm |
dP | 14 mm |
HP | 210 mm |
HP2 | 170 mm |
tP | 8 mm |
Technical specifications
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
Installation
Installation of SPL F 100 with 4 Self Forming Screws FLS to Beam Section TP F.
Installation surface: 110 mm x 90 mm
