ASA QS F100

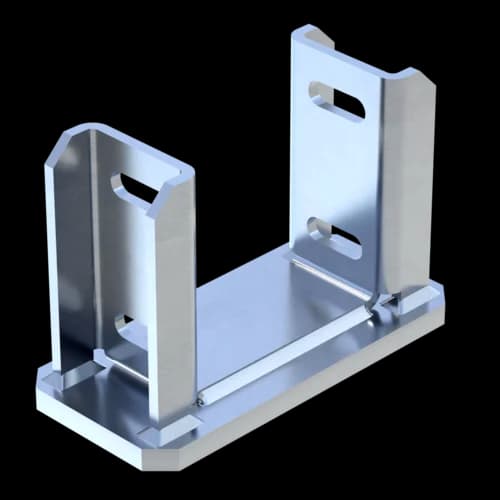

Welding Adapter ASA-QS F100 HCP
Group: A828
Part number 116397
Welding plate with square insert to receive siFramo section
Can be integrated into structural steel design for siFramo frames or used in situ when clamping is not possible and hot works are permitted
Technical Data
B1 | 102 mm |
BP | 170 mm |
HP | 170 mm |
LG | 115 mm |
tP | 10 mm |
Mounting Plate with welded on joint.
Load range
-VX,perm. | 11,70 kN |
VX,perm. | 11,70 kN |
-VY,perm. | 63,90 kN |
VY,perm. | 63,90 kN |
-VZ,perm. | 63,90 kN |
VZ,perm. | 63,90 kN |
-MY,perm. | 20 kNm |
MY,perm. | 20,00 kNm |
-MZ,perm. | 3,7 kNm |
MZ,perm. | 3,7 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment.
Type ASA QS:The siFramo section must be connected with 4 x Self Forming Screw FLS.
Type ASA Q: The siFramo section must be connected with 12 x Self Forming Screw FLS.
