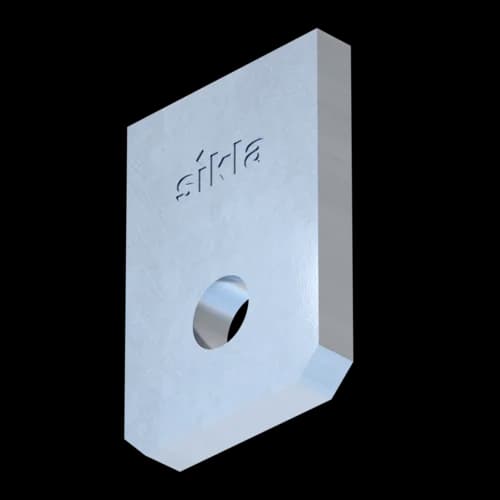

Weld-on Eye-Plate HPA M10-2 HCP
Group: A299
Part number 113017
Weld-on Eye Plate for primary steel beams and steel plates
Serves as a base element for connecting Rod Hanger Load Chain Assembly LKV (M10–M16) and Stabil Form C LK pipe clamps
Can also be welded directly to Welding Plates type SPL if required
Technical Data
B | 45 mm |
d | 11 mm |
L | 65 mm |
t | 8 mm |
Load range
-VZ,perm. | 11,20 kN |
The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation

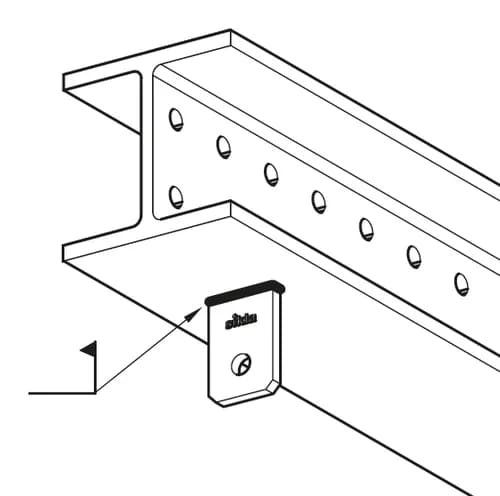

Align the Weld-on Eye Plate to the primary steel section and weld in place. The weld-on eye plate can be welded directly without prior treatment due to a weldable corrosion-resistant coating (no zinc impurity to weld).
Recommended fillet weld 4mm thick (throat thickness = 4mm)
