TWAV
Wall Adapter Plate Connection Set TWAV HCP
Group: A627
Part number 803572
Mounting kit for installing the Wall Adapter Plate TWA
Technical Data

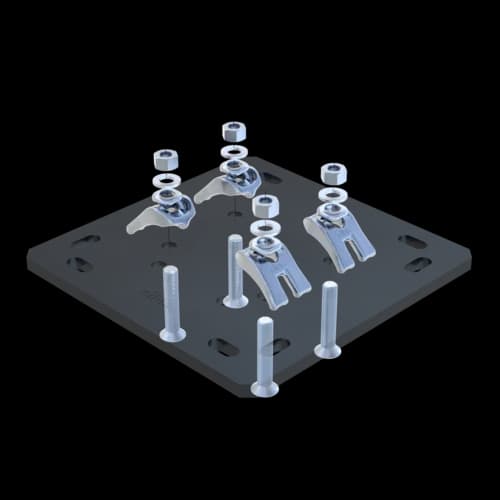

The connection parts set TWAV (Part number 803572) must be ordered separately and consists of the following components in a polybag:
4 x Beam Clip SPA 5P AU M12 HCP
4 x Countersunk Screw SK M12 x 70 ISO 10642 10.9 HCP
4 x Hexagon Nut NT M12 DIN 934 GLT HCP
4 x Washer US 12/125 140 HV HCP
Load range
-VX,perm. | 12,00 kN |
VX,perm. | 12,00 kN |
-VZ,perm. | 12,00 kN |
VZ,perm. | 12,00 kN |
The specified Shear force load capacity relate to the worst case with flange thicknesses 30 mm (M12) as well as a coefficient of static friction µ(adhesion) = 0.20. A possibly operating tensile force F(z) isn't included.
Please consider max loads of anchors.
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
The four countersunk screws of the connecting parts set are inserted into the countersunk holes.The panel is then attached to the steel beam by beam clips, washer and nuts (included in the connecting parts set) to the steel beam. The wall adapter plate is then fixed to the concrete wall with four anchors. The anchors must be ordered separately and selected depending on the substrate.
Connection to flange width: 100/120 mm
Tightening torque MA [Nm] / plus revolution 60/90°
