SB F100-40 HCP

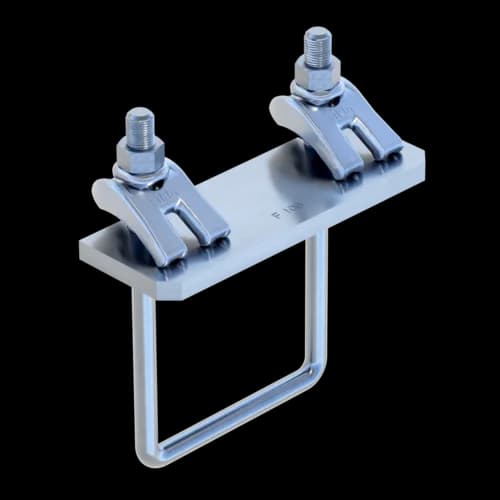

U-Holder SB F100-40 HCP

Group: A839

Part number 113083

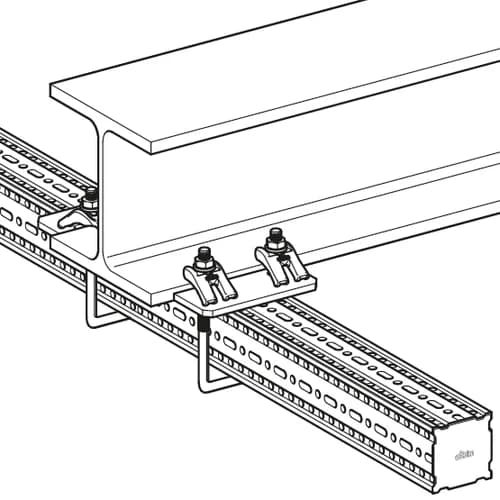

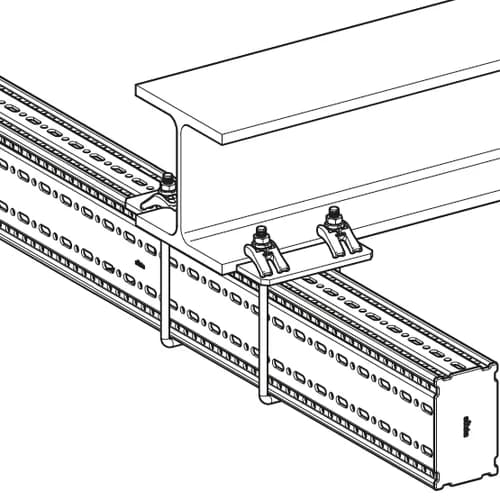

Connecting element for mounting beam sections, crossbeams or cantilevers to steel beams on both sides

Technical Data

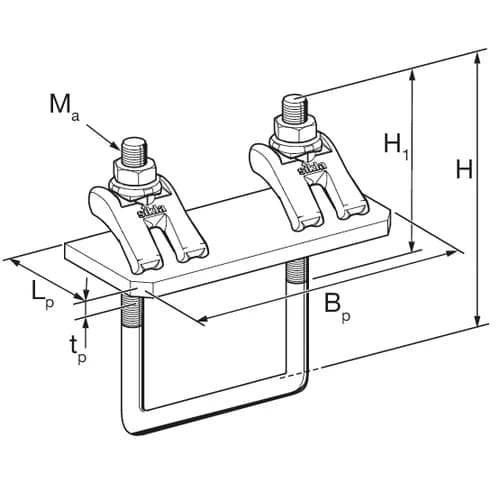

Holder with thread M12
1 Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

-V_Z,perm.	16,00 kN
V_Z,perm.	16,00 kN

Please compare the suitable type's dimensions by means of the siMotec user guideline to get the permissible lateral forces and torques.

Also available with DUALSHIELD for high corrosion protection within C5H environments.

Certification

U-Holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm

Tightening torques:
