Type 46

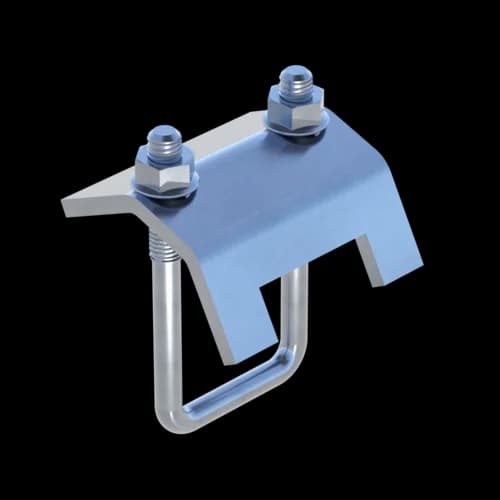

U-Holder SB 46 M10 HCP
Group: B107
Part number 803870
Connecting element for fastening Profile PRO 46 to steel beams, enabling perpendicular cantilever connection
Technical Data
BP | 85 mm |
H | 105 mm |
H1 | 45 mm |
LP | 32 mm |
Ma | M10 |
tP | 6 mm |
Holder with thread M10
1 Plate
2 Hexagon flange nuts M10
Load range
-VX,perm. | 1,80 kN |
VX,perm. | 1,80 kN |
-VY,perm. | 1,31 kN |
VY,perm. | 1,31 kN |
-VZ,perm. | 6,25 kN |
VZ,perm. | 6,25 kN |
Please compare the suitable type's dimensions by means of the siMetrix user guideline to get the permissible lateral forces and torques.
Technical specifications
Material base body | steel |
Class | 8.8 |
Surface | HCP |
Corossion class | C4 |
Certification
CAD

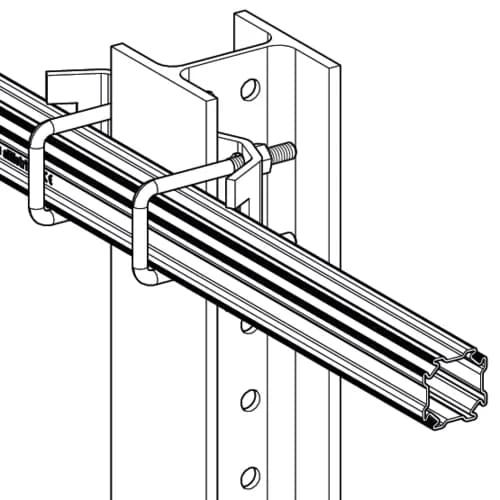

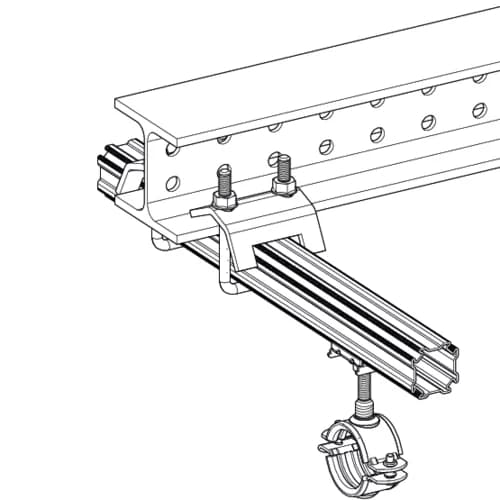

Installation
U-Holder to be used in pairs.
Suitable for beam flange thicknesses of 1 - 30 mm.
Tightening torque: 20 Nm
