Type 27

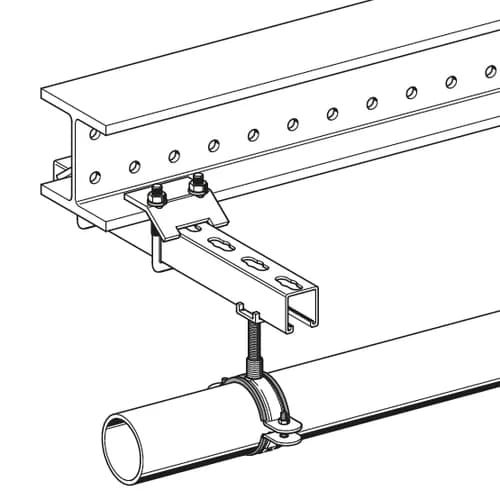

SB_27_10296_AW.eps

U-Holder SB 27 M8

Group: 2731

Part number 195864

Connecting element for fixing Channel MS 27 to beam and girder structures

Allows fixing regardless of channel opening orientation or slotted side

Technical Data
Installation

Technical Data

SB 27 - 41 - F-16_M.eps

B_P	65 mm
H	81,5 mm
H₁	50 mm
L_P	37 mm
M_a	M8
t_P	5 mm

Completely pre-assembled with U-Bolt, Bracket and Flange Nut.

Load range

-V_Z,perm.	2,00 kN
V_Z,perm.	2,00 kN

Max. perm. Load tension per Beam Clamp.

Technical specifications

Material base body	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Certification

Installation

To be used in pairs only.
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang.
Max. flange thickness: 25 mm

Tightening torque: 20 Nm
