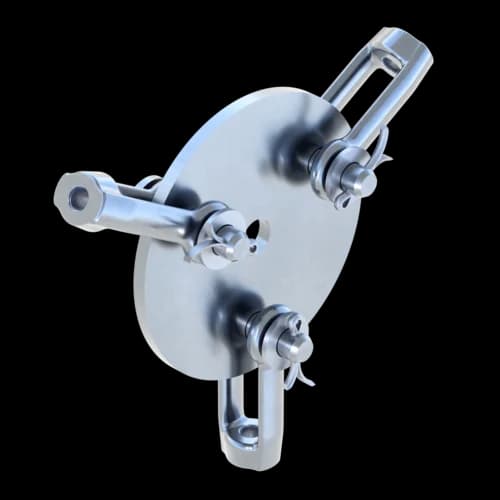

Tension Tie Rod Disc IR
Group: 1334
Tension Tie Rod IR for grid installation on the building structure

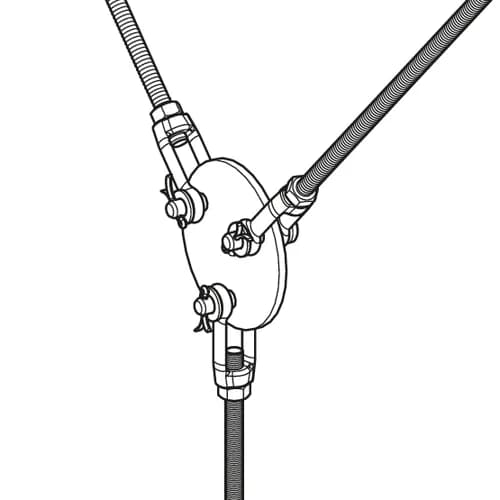

Three Threaded Clevisis enable easy creation of a y-suspension
Overview of Types
General Information

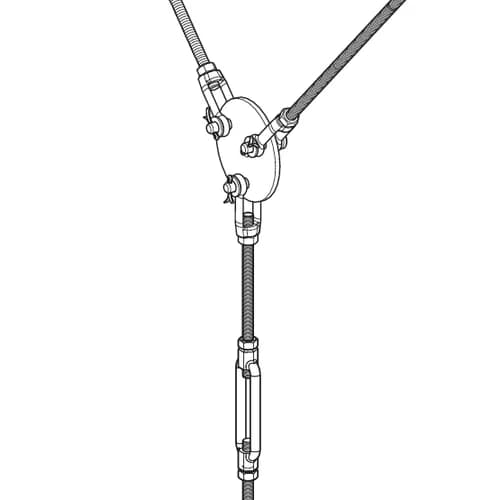

The Tension Tie Rod Disc IR can be used to fix an installation grid to the building structure. By means of the 3 Threaded Clevis GWB it is possible to create a y-suspension easily. Combined with the Clamping Set SPZ HCP the height adjustment of the installation grid becomes easy.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
IR M10 | 13,60 kN |
