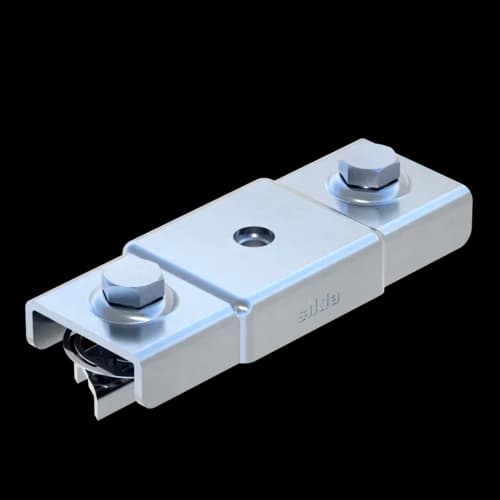

Suspension Holding Bracket IR-RA M10
Group: 1334
Part number 116967

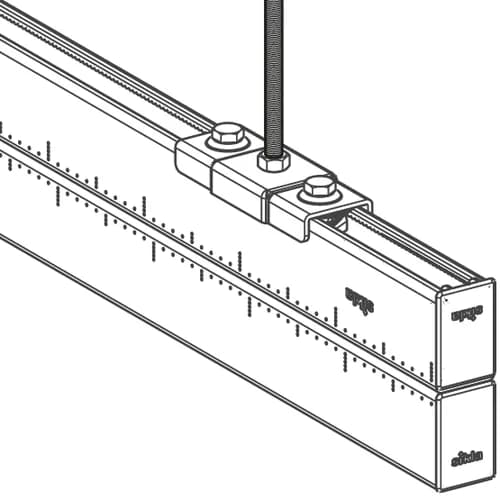

Suspension Holding Bracket IR-RA for attaching ceiling grids or Channel MS 41 to the building structure
Two connection points enable high load transfer
Technical Data
Load range
-VZ,perm. | 12,00 kN |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
Tightening torque: 15 Nm
