WK CC - 150/150
Support Bracket WK CC - 150/150
Group: 1326
Part number 191783
Suitable for use in connection with Sikla Channels
Versatile options for cantilevered brackets in combination with channel

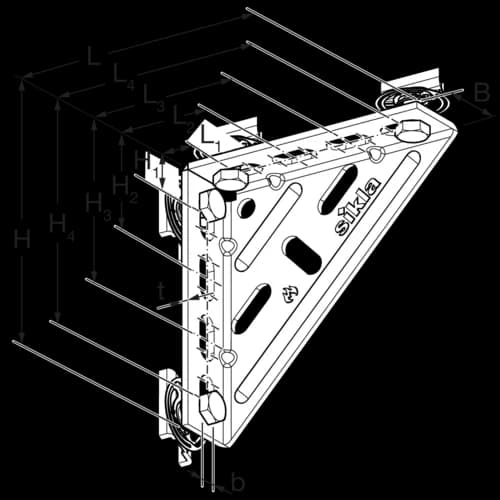

Technical Data
B | 40 mm |
b | 13 mm |
H | 150 mm |
H1 | 25,25 mm |
H2 | 59,75 mm |
H3 | 94,25 mm |
H4 | 128,75 mm |
L | 150 mm |
L1 | 25,25 mm |
L2 | 59,75 mm |
L3 | 94,25 mm |
L4 | 128,75 mm |
t | 4 mm |
Technical specifications
Primary element material | steel |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
