Type 41

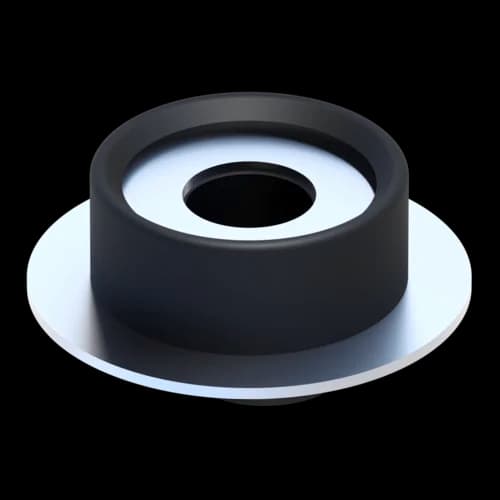

Sound Absorption Element SDE TYP 41
Group: 1610
Part number 107802
Sound Absorption Element for use with Sikla Channels in ducting systems
uitable for sound proof requirements according to DIN 4109
Technical Data
With inserted and retained washer.
Load range
-VX,perm. | 0,30 kN |
VX,perm. | 0,30 kN |
Technical specifications
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | B2 according to DIN 4102 |
Hardness | 50°+/-5° Shore |
Material insulation body | TPE |
