3G2

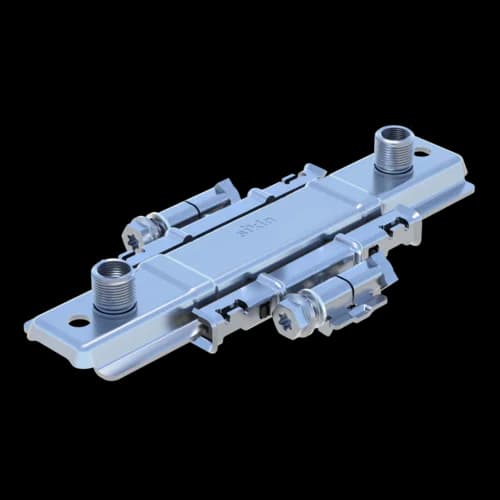

Slide Set GS H3G-PL 46 HCP
Group: B111
Part number 803868
Slide set for single and double guided brackets on siMetrix Profile PRO 46 or direct mounting to the structure
Connection options vary by load, using 3G thread: M10, M16 and 1/2'

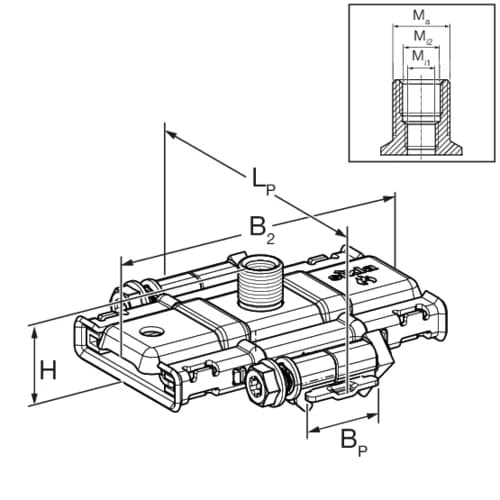

Technical Data
B2 | 155,5 mm |
BP | 38 mm |
H | 43 mm |
LP | 138 mm |
Mi1 | M10 |
Mi2 | M16 |
Ma | 1/2" |
Load range
-VY,perm. | 4,51 kN |
VY,perm. | 4,51 kN |
-VZ,perm. | 3,45 kN |
VZ,perm. | 11,03 kN |
-MX,perm. | 0,13 kNm |
MX,perm. | 0,13 kNm |
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,7 |
Static Friction μ0 | 0,7 |
Material base body | steel |
Material sliding element | PA GF, MoS2-coated |
Surface | HCP |
Corossion class | C4 |
Certification
CAD

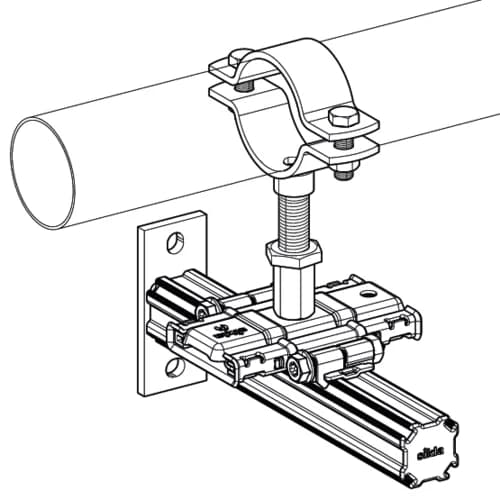

Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Tightening torque siMetrix screws: 15 Nm
