2G2

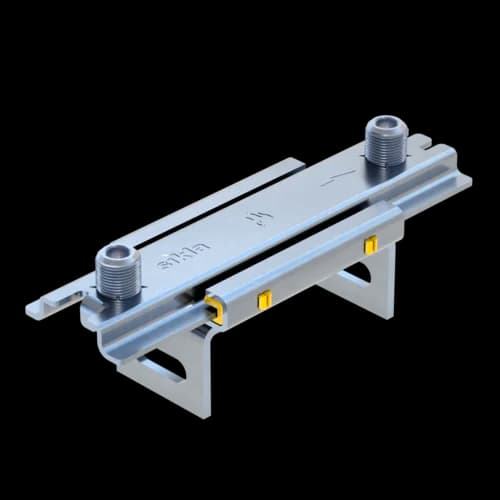

Slide Set GS F100 2G2 HCP

Group: A436

Part number 113093

Slide set for twin-clamp connection

Designed to clutch Beam Section F100

Fixed with 2 Self Forming Screws FLS

Technical Data

Fastening to TP F support profile using two Self-Forming Srews FLS F.

Datasheets / Installation

Permissible long-term temperature

130 °C

Sliding friction μ	0,15
Static coefficient of friction μ₀	0,2

-V_Z,perm.	0,60 kN
V_Z,perm.	1,20 kN
