2G2-PL

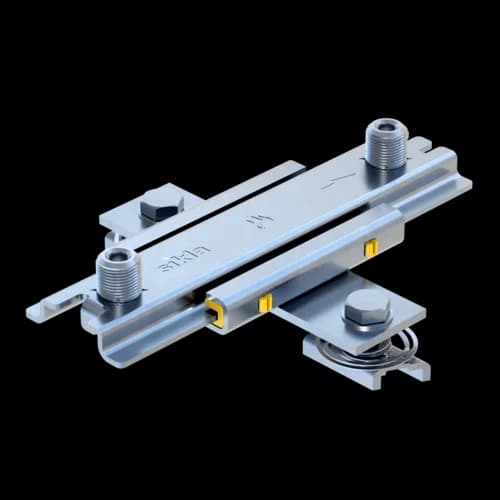

Slide Set GS CC 2G2 - PL
Group: 1336
Part number 191729
Slide set for single and double mounting of mechanical equipment on Sikla Channels, brick or concrete walls and bearers
Preferably used with Sikla Pipe Clamps Ratio S and Stabil D-3G, offering various connection options from M10 to R1'
Slide rails made of polyamide, glass fibre reinforced
Technical Data
b | 13 mm |
B2 | 200 mm |
B4 | 150 mm |
BP | 40 mm |
dP | 13 mm |
HG | 39 mm |
LP | 145 mm |
LP1 | 116 mm |
lz | 10 mm |
Ma | M16 |
Mi1 | M10 |
tP | 4 mm |
Slide Set incl. pre-assembled CC-component.
Load range
-VZ,perm. | 0,60 kN |
VZ,perm. | 1,20 kN |
FRP 30 | 0,6 kN |
FRP 60 | 0,43 kN |
FRP 90 | 0,28 kN |
FRP 120 | 0,2 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | steel |
Material sliding element | PA |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
Locking in the channel by exerting slight pressure on the bolt head, then tighten - the job is done!
Lever L(max): 150 mm
Max. sliding distance Type 2G-PL: 85 mm
Max. sliding distance Type 2G2-PL: 140 mm
