2G-PL

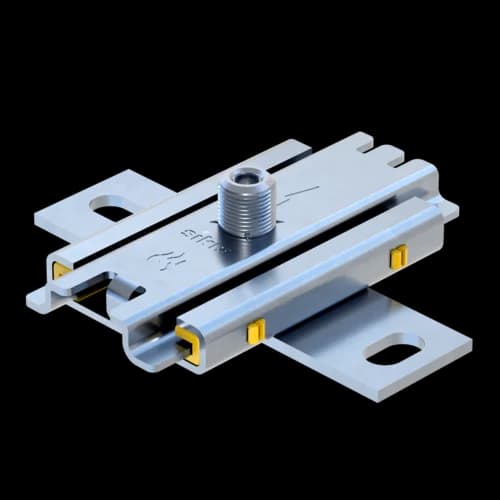

Slide Set GS 2G - PL A4
Group: 1736
Part number 170170
Slide set for single and double mounting of mechanical equipment on Sikla Channels, brick or concrete walls and bearers
Preferably used with Sikla Pipe Clamps Stabil D-2G ss, offering various connection options from M10 to R1' using adapters
Sound absorption provided by glass fibre reinforced PA
Technical Data
b | 13 mm |
B2 | 130 mm |
BP | 40 mm |
dP | 13 mm |
HG | 39 mm |
LP | 145 mm |
LP1 | 116 mm |
lz | 10 mm |
Ma | M16 |
Mi1 | M10 |
tP | 4 mm |
Load range
-VZ,perm. | 0,60 kN |
VZ,perm. | 1,20 kN |
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | Stainless Steel A4 |
Material sliding element | PA |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Max. sliding distance Type 2G-PL: 85 mm
Max. sliding distance Type 2G2-PL: 140 mm
Documents
- Installation - Slide Set GS 2G-PL
PDF (0.10MB)
