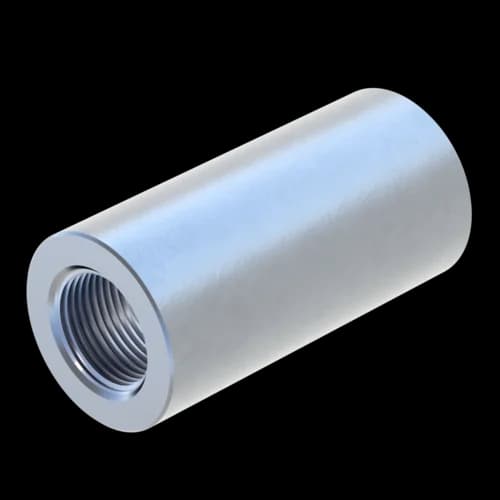

Round Rod Coupling AD RD

Group: 1332

Joins two threaded rods or threaded tubes

Enables distance connection, e.g. in combination with Slide Set and Pipe Clamp

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Element for joining two threaded rods, threaded tubes, as well as distance, e.g. in combination with Slide Set and Pipe Clamp.

Certification

Technical specifications

Material base body	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Software

This product is available in the following software.

Installation

During assembly the Rod Coupling has to be locked with two hexagon nuts (not included in scope of delivery).

Recommended tightening torque: 15 Nm

Info	Type	L	Weight	Quantity	Part number
	AD RD M 8 X 30	30 mm	0,012 kg/pcs.	100 pcs.	157232

	AD RD M10 X 30	30 mm	0,015 kg/pcs.	100 pcs.	157250

	AD RD M12 X 35	35 mm	0,021 kg/pcs.	50 pcs.	157278

	AD RD M16 X 45	45 mm	0,072 kg/pcs.	50 pcs.	157296

	AD RD M16 X 100	100 mm	0,106 kg/pcs.	20 pcs.	191108

	AD RD M16 X 150	150 mm	0,16 kg/pcs.	20 pcs.	191117

	AD RD 1/2'' X 45	45 mm	0,058 kg/pcs.	20 pcs.	191126
