Railing Support GLA F100 HCP
Group: A441
Part number 116815
Adapter plate for connecting railings to the TP F100 profile
Suitable for railing components of sizes 7 and 8 (1 1/4" and 1 1/2" tubes)

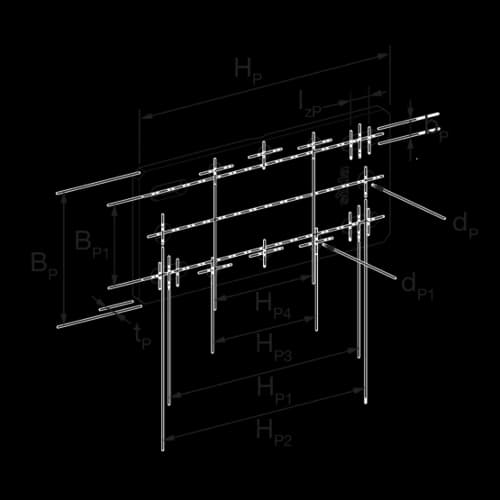

Technical Data
BP | 100 mm |
BP1 | 62 mm |
bP | 11 mm |
dP | 14 mm |
HP | 210 mm |
HP1 | 160 mm |
HP2 | 170 mm |
IZP | 20 mm |
tP | 8 mm |
1 AP GL adapter plate
3 M10 x 30 countersunk screws
3 M10 lock nuts with flange
Note:
This is only an adapter plate (see Fig. 2). All other railing components are not included in the scope of delivery and must be purchased separately and project-specifically. For further information, please contact your Sikla consultant.
Load range
-MX,perm. | 2,3 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
The components meet the requirements of DIN EN ISO 14122.
Certification
Installation
1. Depending on the railing size selected—1 1/4“ or 1 1/2”—choose the appropriate hole pattern for the adapter plate.
2. Screw the railing base (sold separately) to the adapter plate.
3. Connect the adapter plate and support profile with 4 Self-Forming Screws FLS.
