Profile PRO 46 2M HCP
Group: B100
Part number 802157

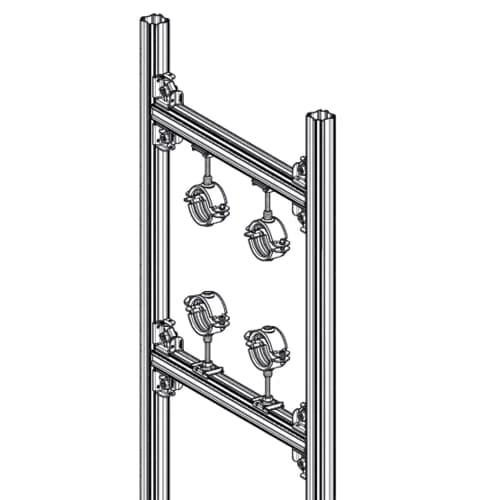

Multifunctional profile for creating crossbars and complex 3D substructures
Closed shape not only provides high torsional rigidity but also allows connectivity on all four sides

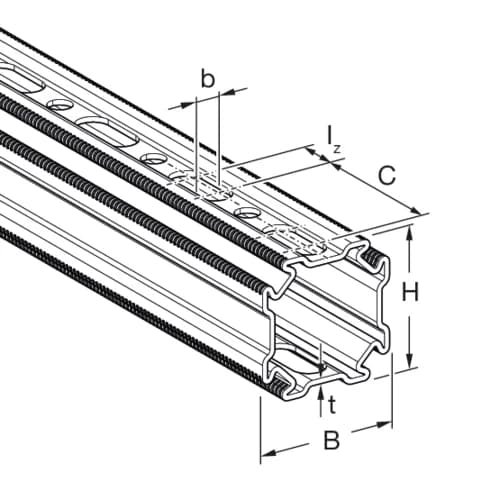

Technical Data
B | 46 mm |
b | 11 mm |
H | 46 mm |
t | 1,8 mm |
Elastic modulus Wy | 4,12 cm³ |
Elastic modulus Wz | 4,12 cm³ |
Second moment of area Iy | 9,49 cm^4 |
Second Moment of Area Iz | 9,49 cm^4 |
Radius of gyration iy | 1,60 cm |
Radius of gyration iz | 1,60 cm |
Torsional constant It | 8,10 cm^4 |
Cross-sectional Area A | 3,70 cm² |
Technical specifications
Permissible stress σ{perm.} | 180,00 N/mm² |
Permissible yield strength fy,perm. | 280,00 N/mm² |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.
