Profile Holder MPH PRO 46 - 41 HCP
Group: B106
Part number 803866

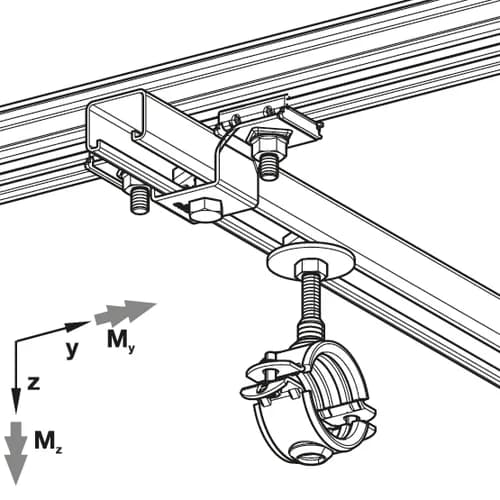

Implementation of a cross-connection between the siMetrix PRO 46 profile and the Sikla Channel with a rail width of 41 mm
Technical Data
B1 | 127 mm |
B3 | 89 mm |
d | 12 mm |
L | 40 mm |
t | 2,5 mm |
Pre-assembled in a set with 2 x Blocksets
Load range
-VX,perm. | 0,27 kN |
VX,perm. | 0,27 kN |
-VY,perm. | 0,78 kN |
VY,perm. | 0,78 kN |
-VZ,perm. | 5,72 kN |
VZ,perm. | 5,72 kN |
-MY,perm. | 0,06 kNm |
MY,perm. | 0,06 kNm |
-MZ,perm. | 0,22 kNm |
MZ,perm. | 0,22 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
CAD
Installation
The cross connection of the Channel MS 41 to the Profile PRO 46 is made on both sides with the block PBH 46.
