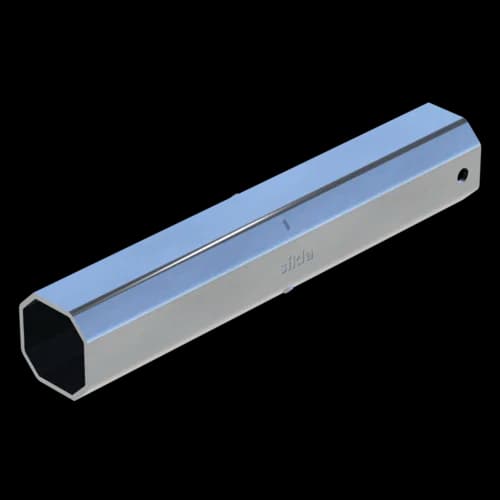

Profile Coupling PK 46 HCP
Group: B108
Internal connecting element for joining two Profiles PRO 46, particularly suitable for vertical extension
For horizontal application, the maximum permissible bending moment at the connection point must be observed
Overview of Types
General Information
Internal connecting element for joining two Profiles PRO 46. Particularly suitbale for vertical extension. Should the component be used for horizontal application, the maximum permissible bending moment at the connection point must be observed.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. |
PK 46 HCP | 13,40 kN | 13,40 kN |
Type | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
PK 46 HCP | 0,4 kNm | 0,40 kNm | 0,4 kNm | 0,4 kNm |
Software
This product is available in the following software.
Installation

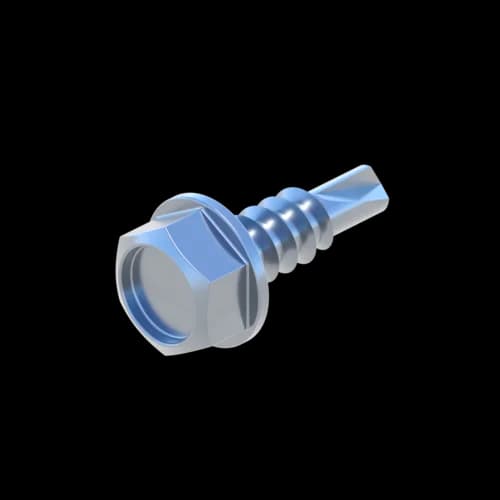

Fix connection with 8 Hexagon Self-Drilling Screws SKB ST 5.5 x 16 HCP, maintaining the largest possible screw spacing for optimal leverage.
Socket Bit AF: 8 mm
