From DN 100
Group: A730
Part number 801770

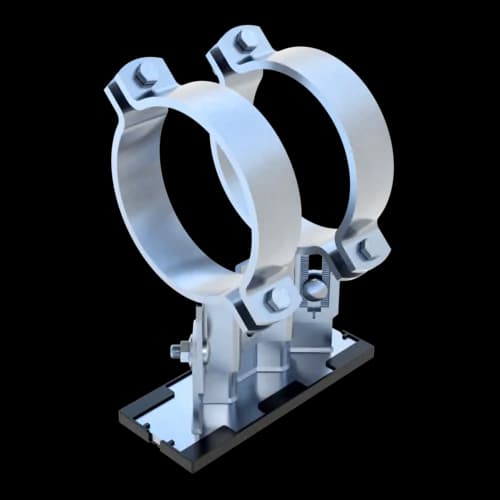

Height-adjustable Pipe Shoe, height adjustment in steps of 2.5mm, delivery height of 150 mm - suitable for sliding pipe supports
Suitable for steel beams, with a minimum flange width of 80 mm
Flexible in combination with other Sikla components to create guide or fixed points.
Sikla Pipe Supports - Comprehensive Solutions for Secure and Efficient Installations
PDF (5.52 MB)
Pipe Shoes LC-HV Type Overview
PDF (196 KB)
Load Capacities for Pipe Supports LC HV - Sikla Technical Data
PDF (262 KB)
b | 50 mm |
B2 | 105 mm |
D | 163 mm |
D1 | 163 mm |
H | 150 mm |
HV min | 116 mm |
HV max | 168,5 mm |
L2 | 255,6 mm |
SG | M12 |
SL | 50 mm |
t | 5 mm |
W | 45° |
Max. temperature | 300 °C |
Min. temperature | -20 °C |
Max. temperature sliding element | 130 °C |
Min. temperature sliding element | -20 °C |
Pipe shoe static coefficient of friction u (without sliding plate) - siFramo and siMotec | 0,3 |
| Type | Height H as delivered [mm] | Height H Range [mm] |
|---|---|---|
| HV 150 | 150 | 116 - 168,5 |
Tightening torque screw connections
| Clamping bolts | Tightening torque [Nm] | Height adjustment | Tightening torque [Nm] |
|---|---|---|---|
| DN 15 - 40 | 40 | Bolts in the bar | 80 |
| DN 50 - 200 | 50 | Bolts in the bar | 80 |
| DN 250 - 300 | 60 | Bolts in the bar | 80 |
Pipe shoe static coefficient of friction u (with sliding plate) - siFramo and siMotec |
0,2 |
Primary element material | steel |
Sliding element material | PA 6.0 |
Surface finish | HCP |
Corrosion protection class | C4 |
