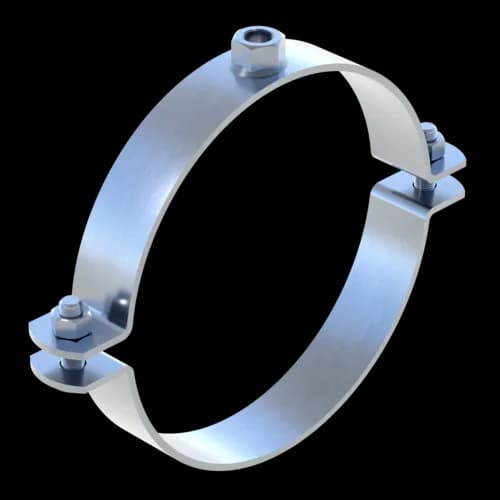

Pipe Clamp STABIL D-M16 500-508
Group: 1232
Part number 103941
For installation of pipes required for M&E services and in plant construction
Technical Data
B1 | 619 mm |
b1 | 70 mm |
D | 508 mm |
D1 | 508 mm |
e | 569 mm |
H | 533 mm |
t | 6 mm |
With welded M16 nut; clamping bolts and nuts included in loose form.
Load range
-VZ,perm. | 15,00 kN |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
FM-Approval for DN 218 - 277
Installation
Tightening torques:
| Size range [mm] | Tightening torque [Nm] |
|---|---|
| 218 - 277 | 10 |
| 316 - 521 | 20 |
