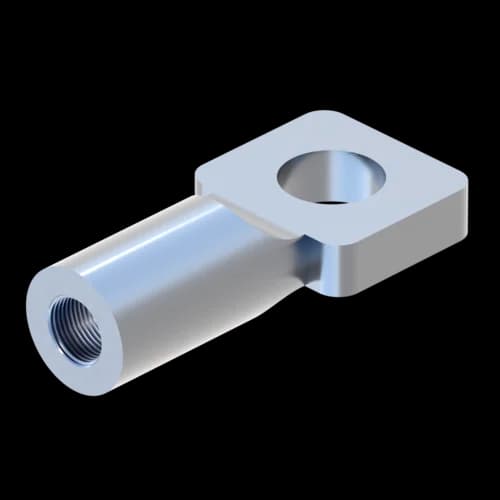

Link Eye SCB RH M10
Group: 1301
Part number 124203
For connecting the Stabil D-A pipe clamp via the clamp lugs
Suitable for adjusting threaded rods
Technical Data
d | 12 mm |
L | 50,5 mm |
L1 | 13 mm |
L2 | 11 mm |
Mi1 | M10 |
t | 6,5 mm |
Load range
-VZ,perm. | 7,00 kN |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Satifies the VdS standards.
